442 Agilent E5505A User’s Guide
19
PC Components Installation
4
Enter the license key for your phase noise test set and click the Set button.
Use Licence_key.txt described in the next steps to facilitate entering your
license key into the licensing dialog box.
a
Insert the E5500 License Key disk in the computer.
b
Using Notepad, load License_key.txt. See Figure 334 on page 443.

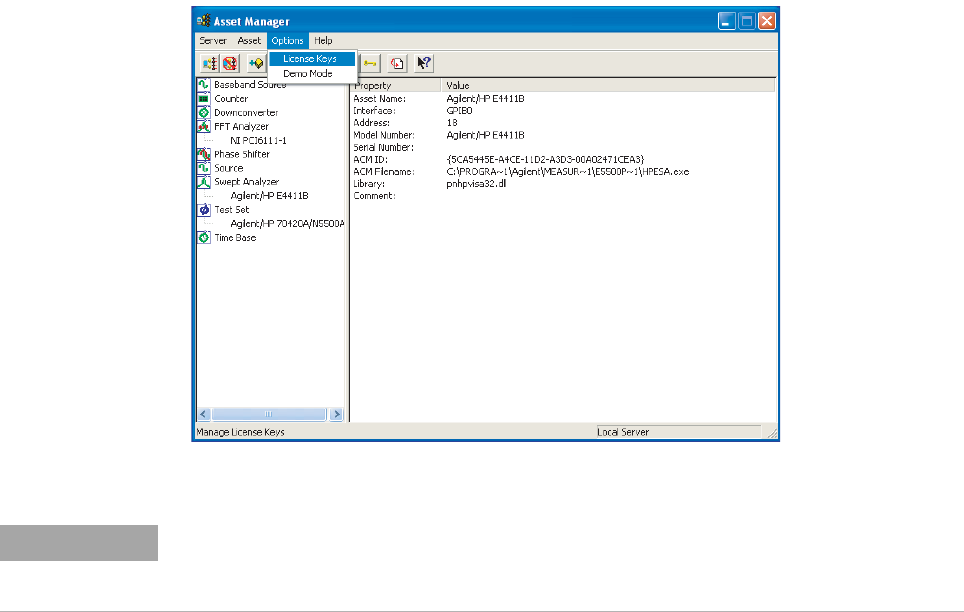

Figure 333 Navigate to license keys
NOTE
The license key for your system is unique and may only be used with a specific N5500A
test set serial number. The license key may be found both on your license-key document
and in the file “license_key.txt” on the License_key floppy disk provided with your system.
