PC Components Installation

Agilent E5505A User’s Guide 441

You have just used the Asset Manager to configure the PC digitizer. The

process for configuring the test set and PC digitizer is the same process you

use to add software-controlled assets to the phase noise measurement system.

Configuring the Agilent E4411A/B (ESA-L1500A) Swept Analyzer

To configure the E4411A/B Swept Analyzer, follow the same steps you used

to configure the test set. (Refer to “Configuring the Phase Noise Test Set" on

page 431.)

In the Select Interface and Address box, use 8, the default GPIB address for

the E4411A/B. (Table 74 on page 438 contains the default GPIB addresses

for the system instruments.)

Click Server, then click Exit to exit the Asset Manager.

Step 13: License Key for the Phase Noise Test Set

Use this procedure to enter the keyword for your phase noise test set.

Make sure your computer and display are on.

Referring to Figure 332, navigate to the E5500 Asset Manager.

Click Options, and then click License Keys. See Figure 333 on page 442.

NOTE

If you have ordered a preconfigured phase noise system from Agilent Technologies, skip

this step and proceed to “Powering the System On" on page 36.

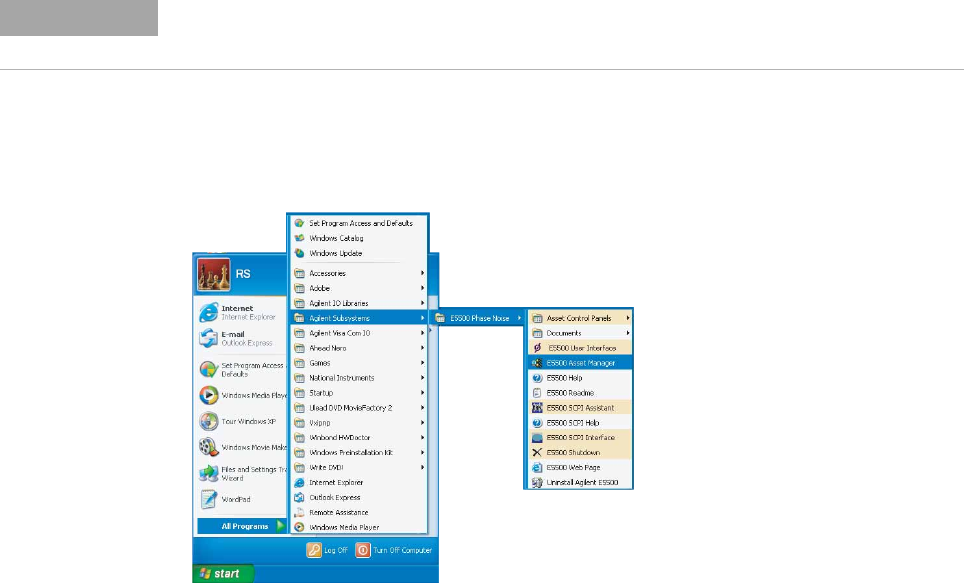

Figure 332 Navigate to E5500 asset manager
