436 Agilent E5505A User’s Guide
19
PC Components Installation
3
In the Choose Supporting ACM dialog, click on II PCI20428W-1, then click
the Next button. See Figure 326.
4
In the Select Interface and Address dialog:
a
Select PCI From the Interface pull-down list.
b
Type 320, the default address for the II20428 PC Digitizer, in the
Address box. Table 74 on page 438 shows the default device addresses.
c
The Library pull-down list does not apply to this example. It applies
specifically to either the Agilent GPIB or the National GPIB interface
cards.

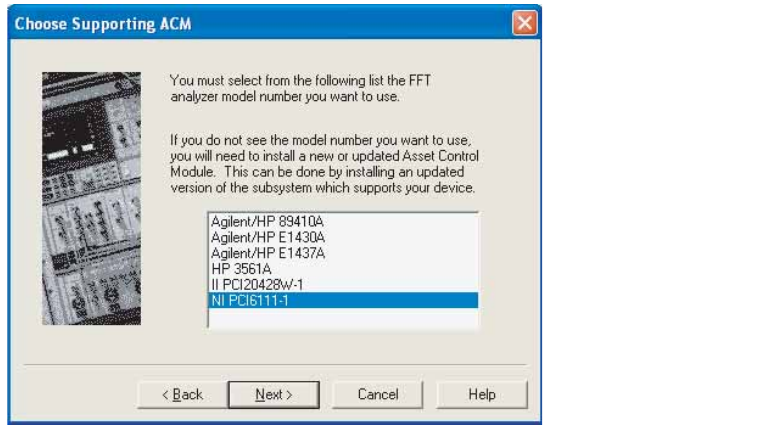

Figure 326 Select supporting ACM
