434 Agilent E5505A User’s Guide
19
PC Components Installation
You have just used the Asset Manager to configure the N5500A test set. The
process for configuring any asset is essentially the same. Repeat this
procedure for all of the assets that you wish to add to your N5505A system.
You must add the test set and the PC digitizer to perform the confidence test
(see “Performing a Confidence Test" on page 39). The PC digitizer
configuration procedure follows on page 435.
Table 74 on page 438 contains the default GPIB addresses for the instruments
in the system.

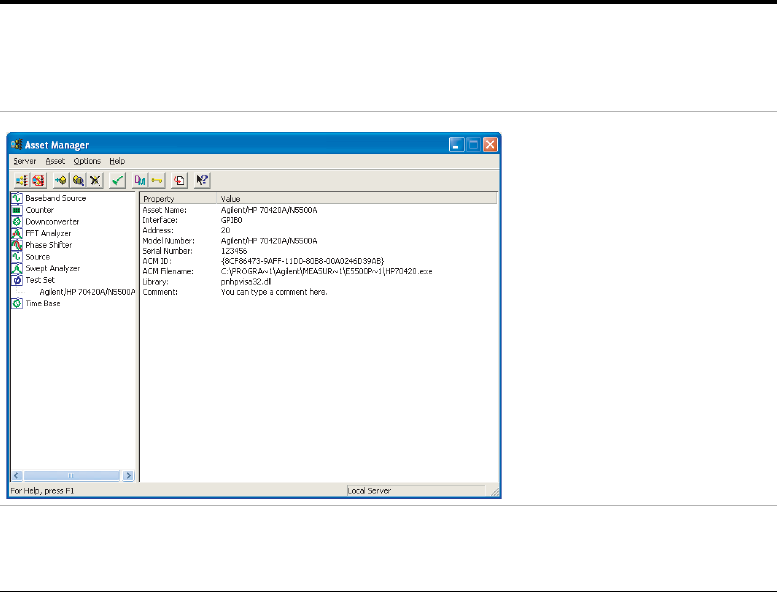

13 View the test set information in the Asset
Manager window and confirm that it is correct.
•
The left pane shows the list of asset
roles and assets. The right pane shows
the asset information. The right pane is
information only. The left pane is active.
14 To change information about an asset,
double-click on the asset in the left pane and
change the information in the box that appears.
