PC Components Installation

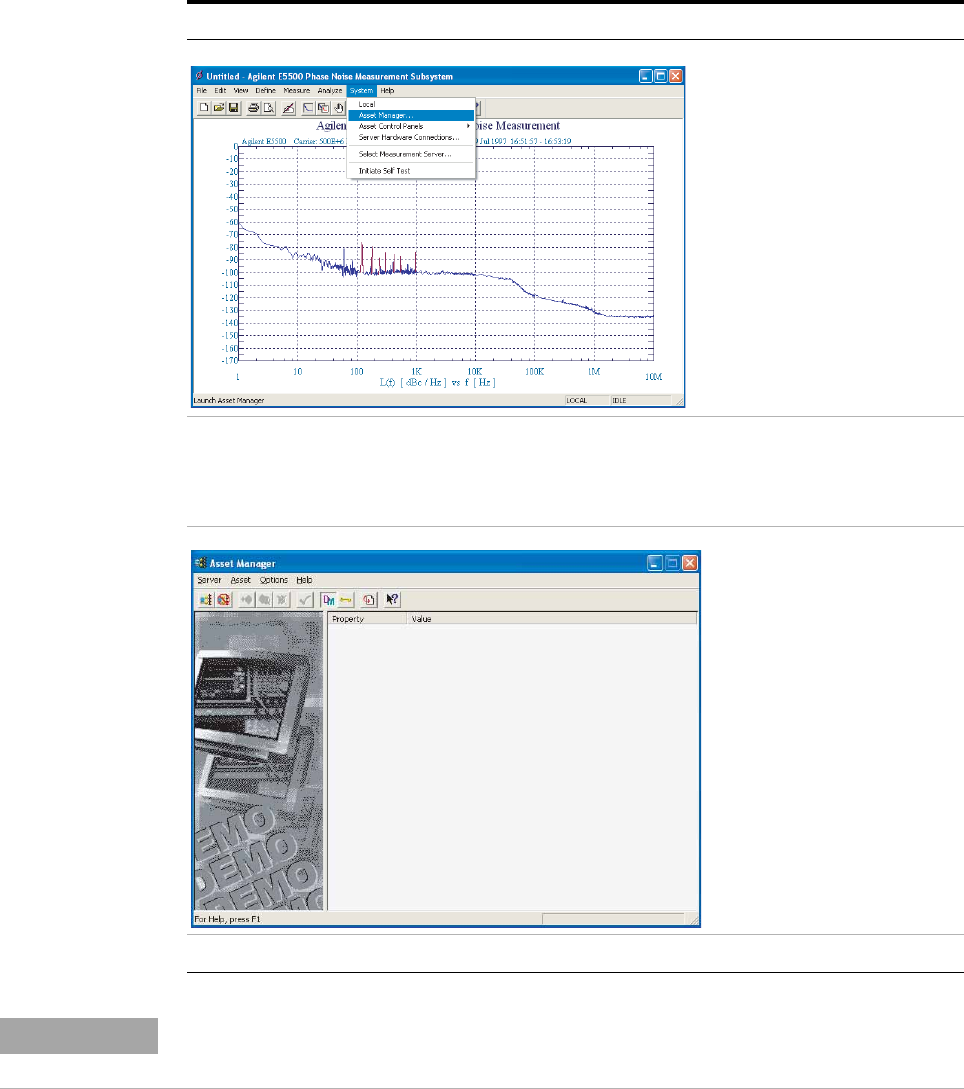

2 From the menu, select Options and deselect
Demo Mode.
•
If the Asset Manager is in Demo Mode,
the left pane shows a graphic with the
word DEMO. If it is not in Demo Mode, the
left pane shows a list of assets.
3 Close the Asset Manager.
To set up Asset Manager (continued)
Step Note
NOTE
When Asset Manager is invoked from the E5500 main menu, you must restart the E5500
software for any configurations changes to take effect.
