PC Components Installation
19
Agilent E5505A User’s Guide 429
Step 12: Asset Configuration
An asset is any piece of hardware that you want to configure for system use
(N5500A, for example). An asset role is the general category of the hardware
(test sets, downconverters, counters, and so on.) In the E5505A phase noise
system, the Asset Manager serves to configure the system instruments. This
section describes how to set up and use the Asset Manager.
Setting Up Asset Manager
Before you use the Asset Manager to configure your system instruments, you
may need to take it out of Demo Mode. (Asset Manager runs in Demo Mode on
initial installation or if it is installed on a PC to which no system instruments
are attached.) You must invoke the Asset Manager to determine if it is in Demo
Mode.
7 Restart the PC.
To install the E5500 software (continued)
Step Note
To set up Asset Manager
Step Note

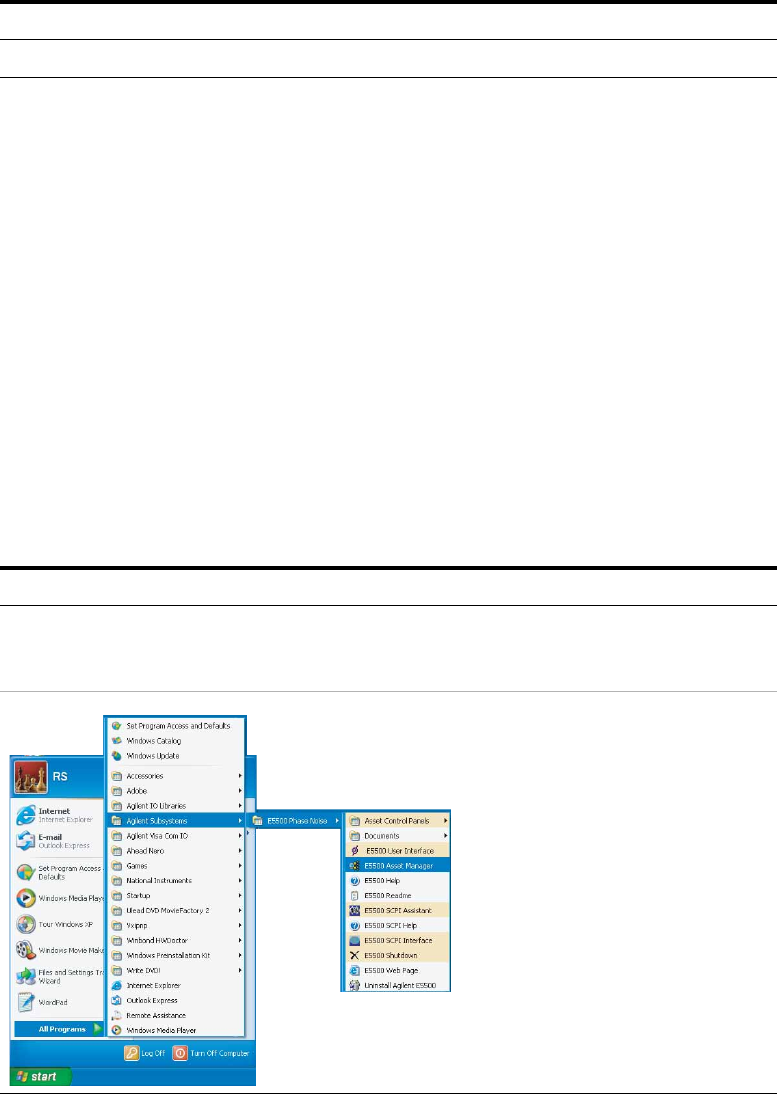

1 Navigate to the Asset Manager by selecting
Start/Programs/Agilent Subsystems/E5500
Phase Noise/E5500 Asset Manager.
•
You can also invoke the Asset Manager
from the E5500 software main menu. From
the menu, select System/Asset Manager.
