428 Agilent E5505A User’s Guide
19
PC Components Installation
4 Follow the instructions in the installation
wizard.
•
Accept the default settings.

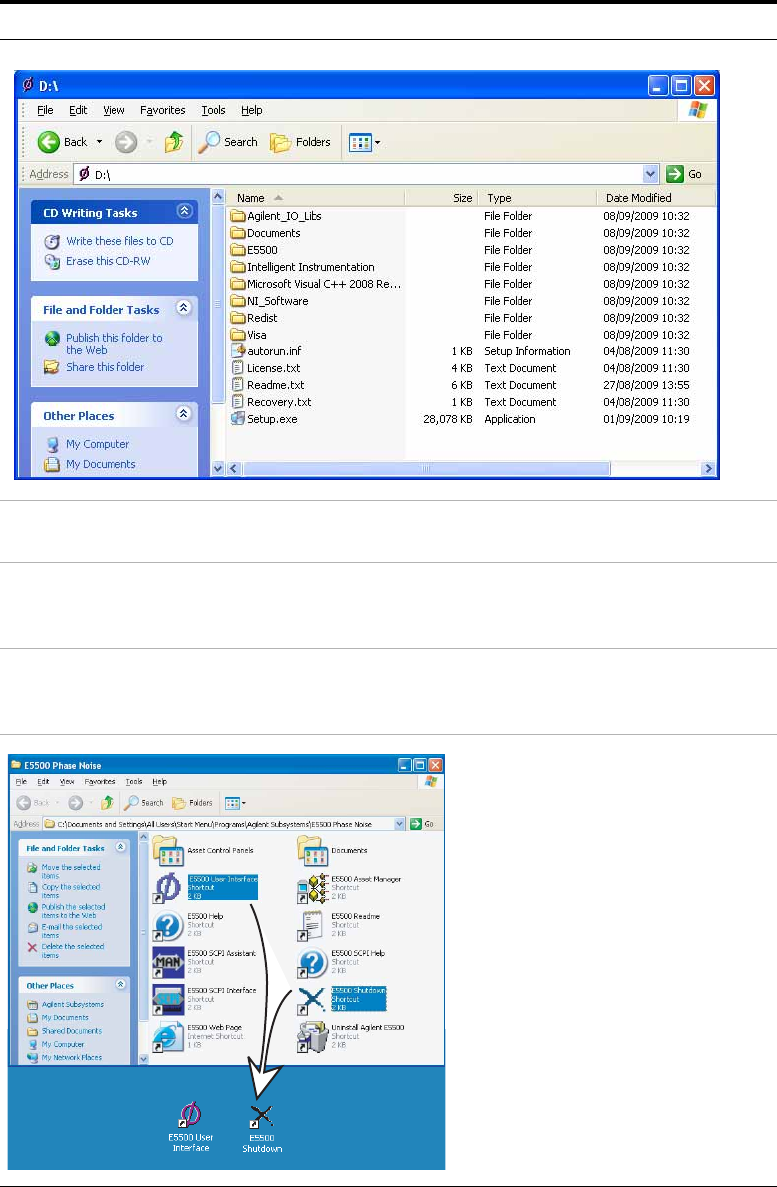

5 When finished, double-click the E5500 Phase
Noise folder now on the PC desktop to open
it.
•
The software places the E5500 Phase
Noise folder on the desktop as part of the
installation process.
6 Copy the E5500 User Interface (UI) shortcut
and the E5500 Shutdown shortcut to the PC
desktop.
•
This provides easy access to the E5500
software and the Shutdown utility.
To install the E5500 software (continued)
Step Note
E5500_copy_icons
04 Apr 04 rev 1
