424 Agilent E5505A User’s Guide
19
PC Components Installation
8 This will rename the current visa file in “C:\
WINDOWS\system32” to “visa32.dll.bak”
Continue with the installation.
9 If the PC has not gone through a reboot,
then reboot it.
10 Navigate to the “C:\WINDOWS\system32”
directory and rename the “visa32.dll.bak”
file to “nivisa32.dll”.

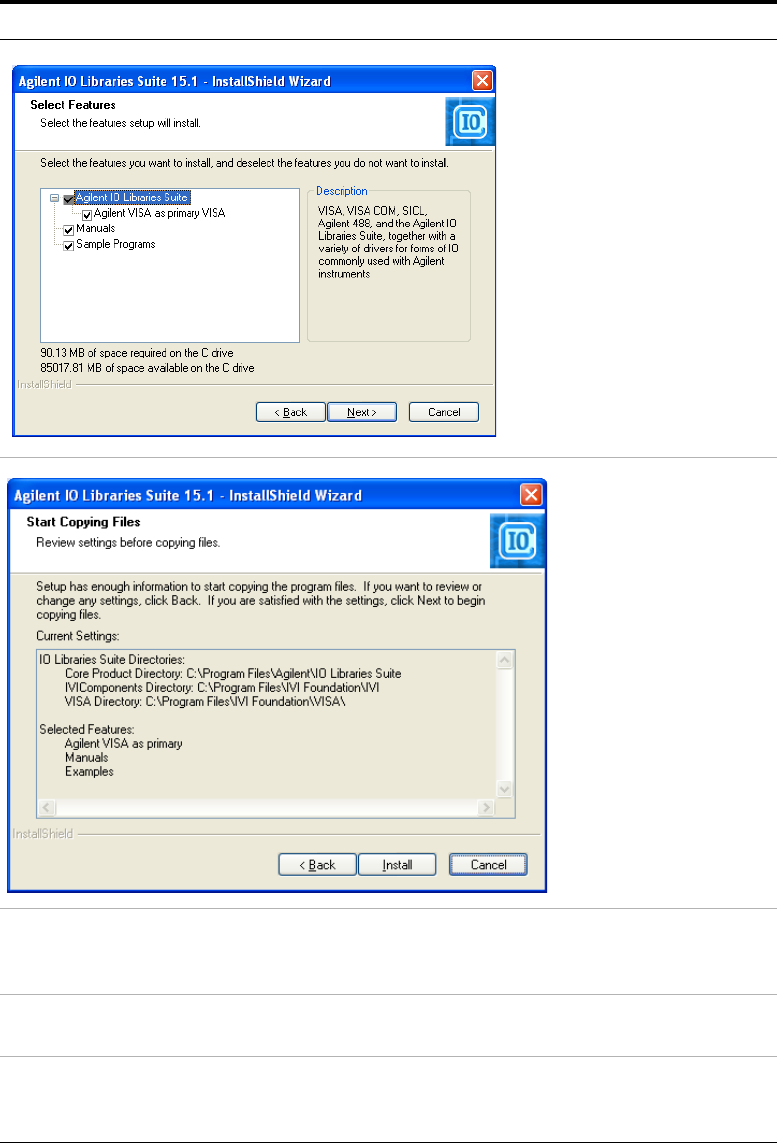

To install the Agilent I/O libraries (continued)
Step Notes
