PC Components Installation
19
Agilent E5505A User’s Guide 421
NOTE
If you re-install or upgrade the Agilent I/O Libraries at a later date, you must also re-install
the E5500 Phase Noise Measurement Software after the I/O Library installation.
To install the Agilent I/O libraries
Step Notes
1 Make sure your PC and display are on.
2 Place the E5500 Phase Noise Measurement
System software DVD-R in the PC’s DVD-R
drive.
•
A window appears with the contents of the
CD. If the window doesn’t appear, navigate
to the folder using the menu selections
Start/Run/Browse.
3 Double-click on the folder IO_Libraries.
4 After double clicking the execute file, the
install wizard shield should appear.

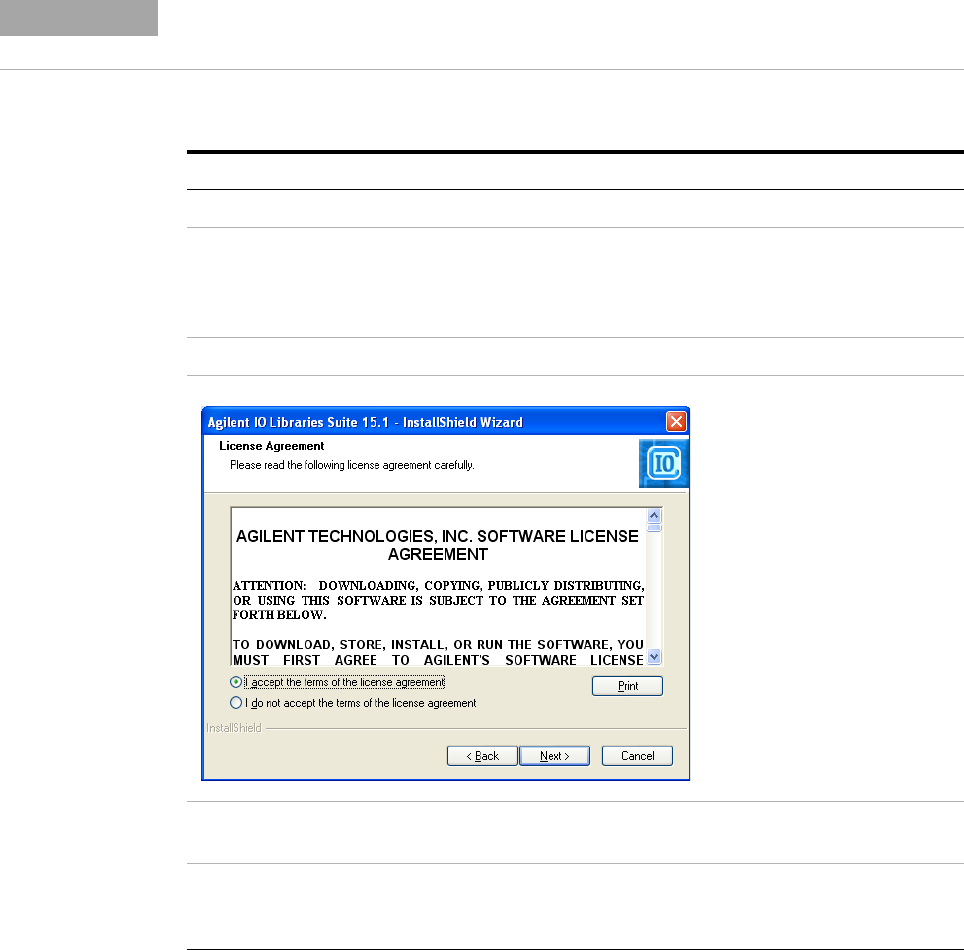

a Read and review Agilent Terms and
conditions. If you accept them, then select
Accept, followed by Next
