PC Components Installation
19
Agilent E5505A User’s Guide 417
3
Replace the PC cover as described in the manufacturer’s documentation.
For the system’s Advantech or Kontron PC, re-install the hold-down bar
(with additional rubber bumpers if desired), then replace the cover.
Step 7. Finalize National Instruments Software Installation.
When you power on the PC again, the installation wizard leads you through a
few last steps of installing the National Instruments software.
To finish the National Instruments software installation:
1
Reconnect the power cord to the PC and the AC power supply.
2
Power on the PC and the display.
3
Follow the instructions in the installation wizard.
4
Do NOT restart the PC at this time.
Step 8: System Interconnections
Use the information in this section to make connections between the
system PC and the N5500A test set.
Connectors
Table 73 contains the connectors on the main N5505A system instruments.

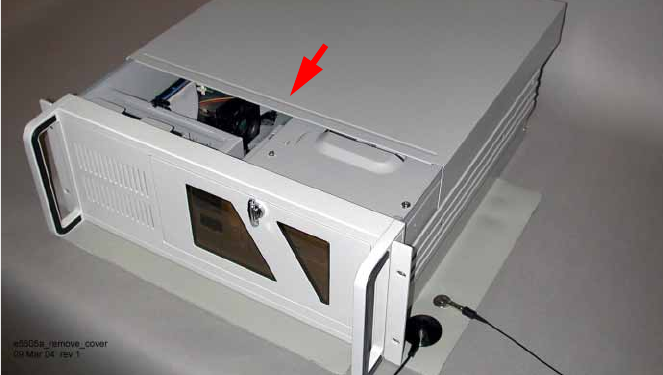

Figure 321 Replace cover
