416 Agilent E5505A User’s Guide
19
PC Components Installation
2
Screw the mounting bracket to the PC back-rail panel to secure the card.

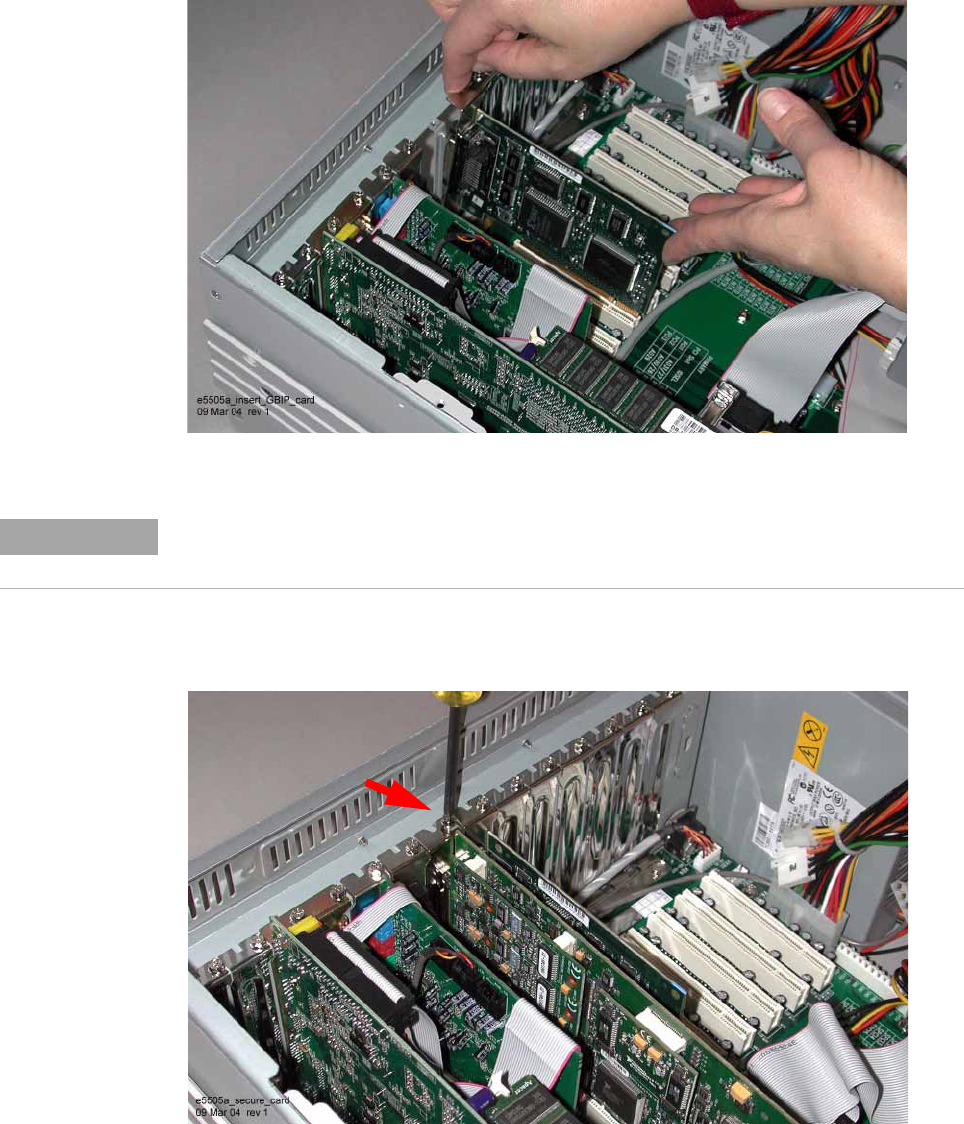

Figure 319 Insert GPIB card
NOTE
You may need a GPIB connector extender to provide adequate clearance between the GPIB
cable and the computer chassis.
Figure 320 Secure card with screw
