PC Components Installation
19
Agilent E5505A User’s Guide 415
Step 6e: Installing the GPIB interface card (PCB)
Perform this installation with the PC disconnected from AC power. Figure 318
shows a GPIB interface card.
1
Insert the GPIB card in the PCI connector. Gently rock the card into place;
do not force it. Make sure the card is fully seated by pushing firmly on the
edge of the card with the palm of your hand.
NOTE
Only Agilent Technologies PCI GPIB cards, 82350, are supported.

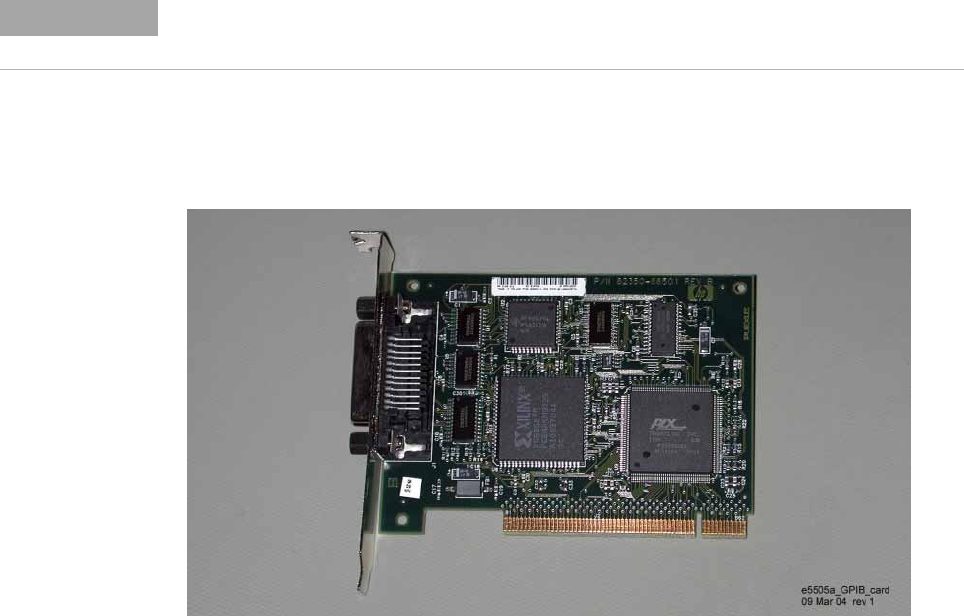

Figure 318 GPIB interface card
