414 Agilent E5505A User’s Guide
19
PC Components Installation
2
Screw the mounting bracket to the PC back-rail panel to secure the card.
3
Connect the digitizer adapter to the back of the PC digitizer card, as shown
in Figure 317.
While you have access to the expansion slots, also install the second piece of
phase noise system hardware, the GPIB interface card.

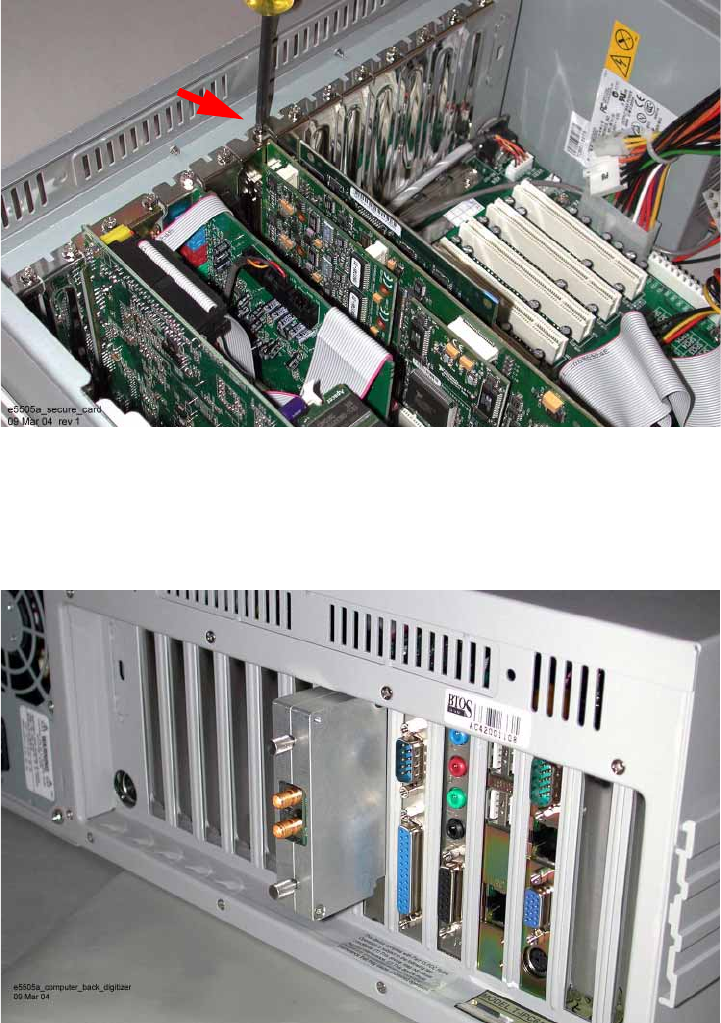

Figure 316 Secure card with screw
Figure 317 Connect adapter to PC digitizer card
