PC Components Installation
19
Agilent E5505A User’s Guide 413
1
Insert the PC digitizer card edge connector into the PCI connector. Gently
rock the card into place; do not force it. Make sure the card is fully seated by
pushing firmly on the edge of the card with the palm of your hand.

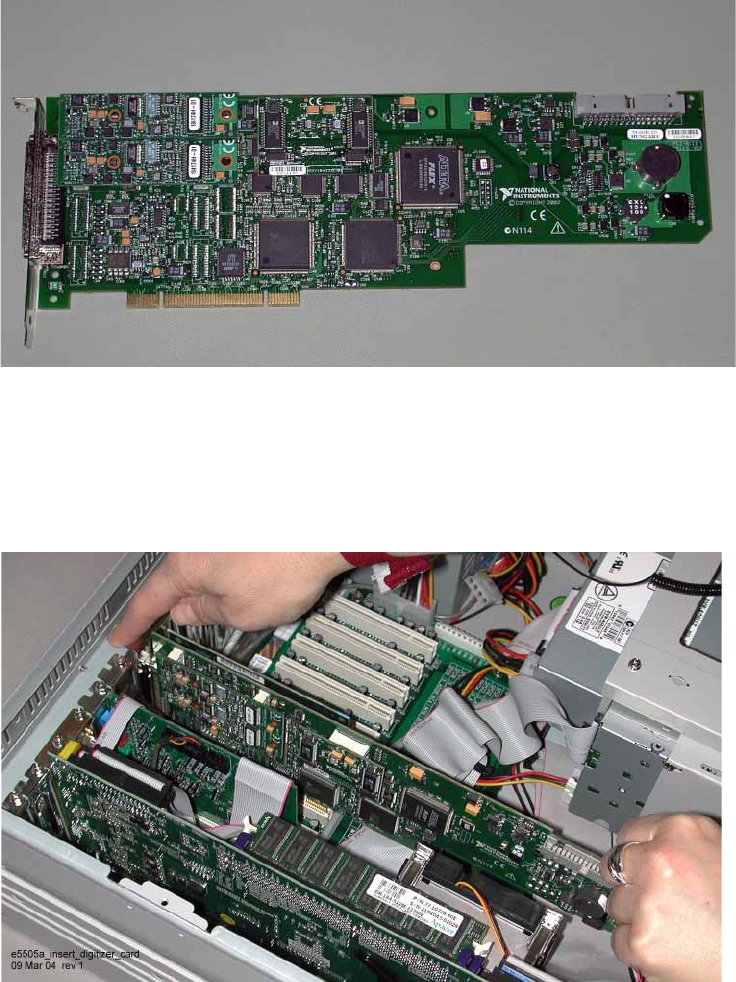

Figure 314 PC digitizer card
Figure 315 Insert PC digitizer card
