412 Agilent E5505A User’s Guide
19
PC Components Installation
Step 6c: Accessing PC expansion slots
Figure 313 shows a view of the expansion slots vertically mounted; your
computer’s expansion slots may be horizontally mounted, but the process is
the same.
1
Look for suitable expansion slots for both the PC digitizer card and the
GPIB interface card. Choose slots that provide good external access to the
PC Digitizer and GPIB interface connectors. You may want to leave an
empty expansion slot between the cards for easier internal access.
2
Remove their cover plates by unscrewing the securing screw and lifting
them off the slot. (Save the blank cover plates for use if the cards are
removed later.)
Step 6d: Installing the PC digitizer card (PCB)
Perform this installation with the system PC disconnected from AC power.
Figure 314 shows a PC digitizer card.

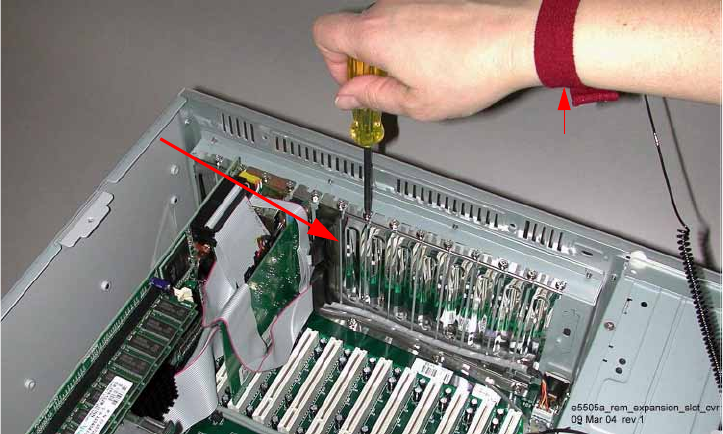

Figure 313 Vertically-Mounted expansion slots
Grounding
wrist strap
Expansion slot(s)
