PC Components Installation
19
Agilent E5505A User’s Guide 411
b

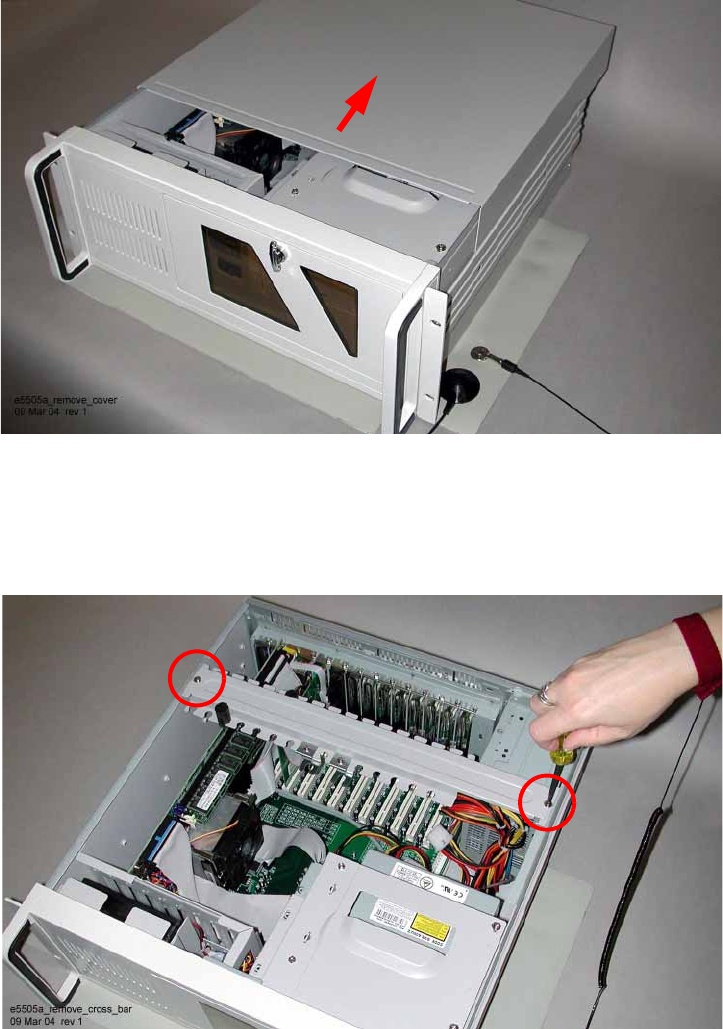

Carefully slide the cover away from the front of the unit then lift it off.
c
Uninstall the internal hold-down bar by removing the two screws that
attach it and lift the bar out of the unit.
Figure 311 Slide cover off
Figure 312 Remove hold-down bar
1
2
