410 Agilent E5505A User’s Guide
19
PC Components Installation
Step 6a: Taking ESD precautions
Step 6b: Preparing for Installation
You need a #1 POZIDRIV screwdriver to install hardware in the system PC.
1
Make sure that your PC and all its peripherals are powered off.
2
Disconnect the power cord from the PC.
3
Remove the cover from the PC to access the PC’s expansion slots. See the
PC manufacturer’s documentation for instructions.
To remove the cover of the N5505A system Advantech or Kontron PC:
a
Remove the top two screws on the left and right sides of the PC.
CAUTION
The PC Digitizer and GPIB interface cards are static-sensitive devices. Wear a
properly grounded wrist or foot strap while handling the cards and performing the
procedures in this section. Failure to do so can result in damage to the electronic
devices and assemblies involved.
While inserting the cards, be sure to hold them by the edges.

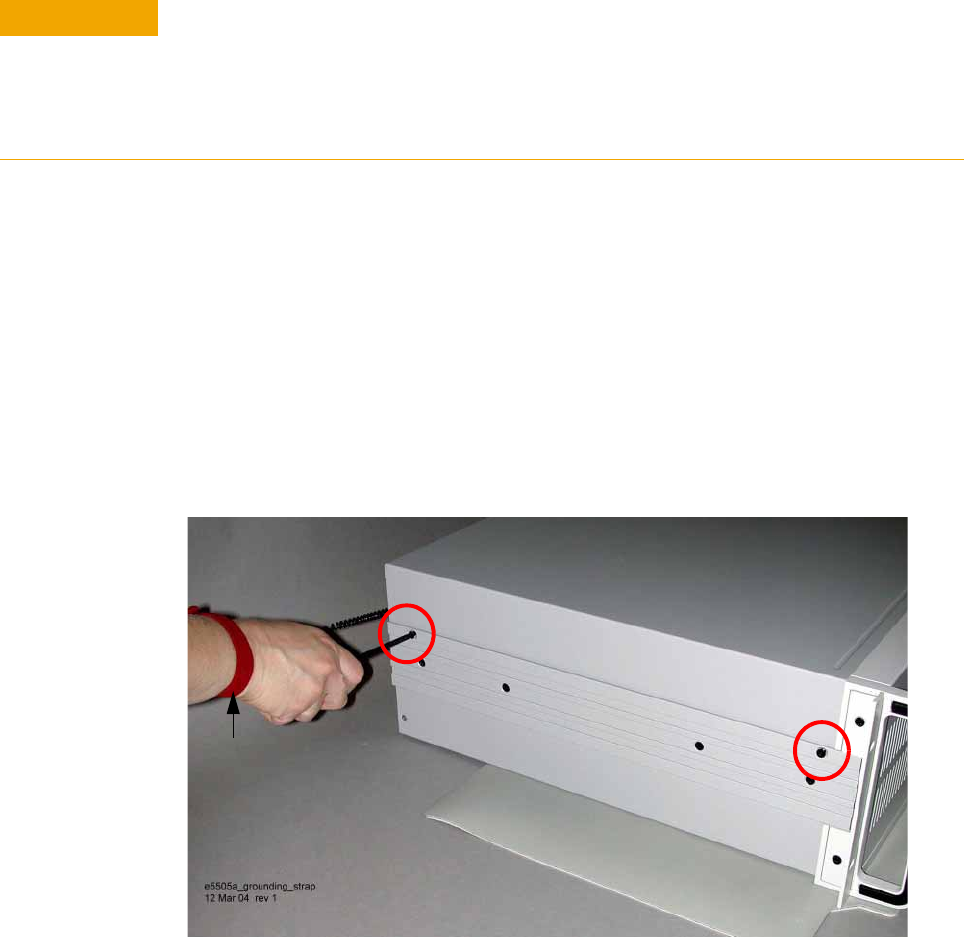

Figure 310 Remove screws from side of CPU
Grounding
wrist strap
1
2
