Introduction and Measurement

Agilent E5505A User’s Guide 41

When the Do you want to Perform a New Calibration and Measurement?

dialog box appears, click Yes. See Figure 9.

Connect the equipment per Figure 10 and ensure the signal output is

turned off.

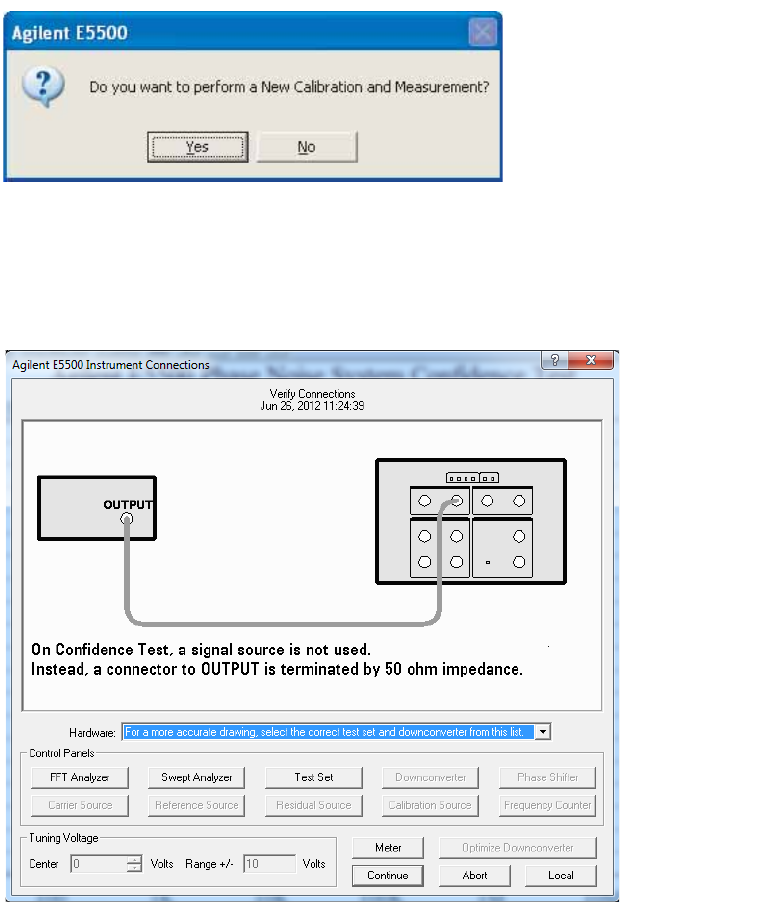

Figure 9 Confirm new measurement

Figure 10 Setup diagram displayed during the confidence test.
