404 Agilent E5505A User’s Guide
18
System Interconnections

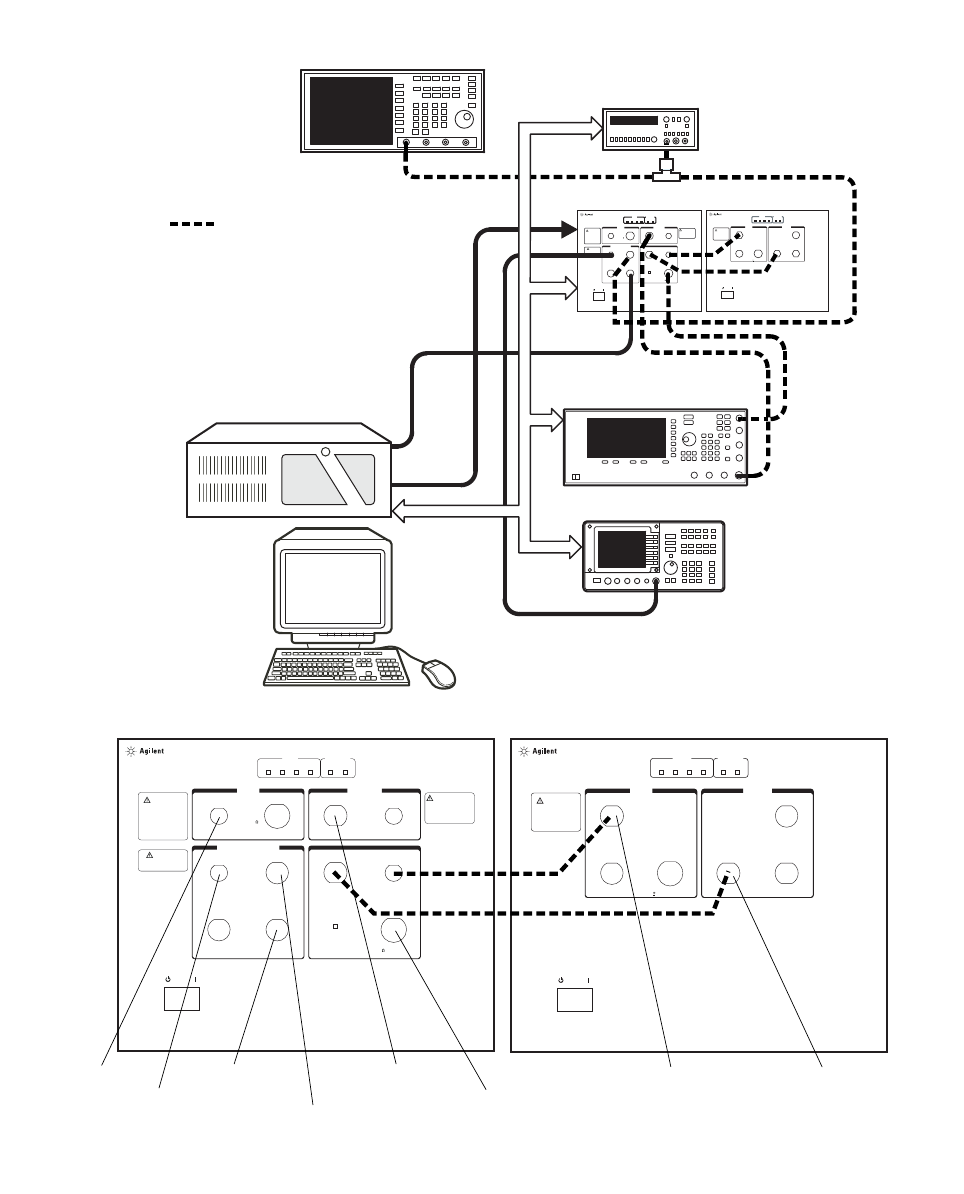

Figure 308 E5505A system connections with test set option 001
OUTPUT
RF ANALYZER
1.8- 6.6GHz
AUX LOIF
5 -1500 MHz
ANALYZER
FROM TEST SET 10 VOLTS MAX
CONTROL
VOLTAGE
5MHz-6.6GHz
+
5-
+
15 dBm
SIGNAL
INPUT
RMT LSN TLK SRQ ERRACT
STATUSGPIB
5MHz-1GHz
+
10 dBm
1 GHz- 6.6GHz
+
15 dBm
MAXIMUM POWER
0VDC MAX
SIGNAL INPUT
POWER
N5501A
Downconverter
+
23 dBm
1.2- 26.5GHz
+
10 dBm
50 kHz -1600MHz
MAXIMUM POWER
20 mA MAX
TO
DOWNCONVERTER
FROM
DOWNCONVERTER
TUNE VOLTAGE
OUT OF LOCK
<
100 kHz
ANALYZERANALYZER
RF ANALYZER
PHASE DET OUTPUT
MONITOR
+
15 dBm MIN
50 kHz -1600 MHz
+
7 dBm MIN
1.2 -26.5 GHz
REF INPUT
ERRACT
STATUS
SRQTLKLSN
GPIB
RMT
NOISE
0.01 Hz -100 MHz
1V Pk
50
50 kHz - 26.5 GHz
INPUT
SIGNAL
POSSIBLE
SIGNAL INPUT
0 VDC MAX
<
100 MHz
50
50 kHz -1600MHz
+
23 dBm
+
ATTEN
1.2 GHz- 26.5GHz
+
10 dBm
+
ATTEN
+
30 dBm MAX WITH
ATTENUATOR
MAXIMUM POWER
+
30 dBm
OUTPUT POWER
POWER
N5500A Opt 001
Test Set
+
23dBm
1.2-26.5GHz
+
10dBm
50kHz-1600 MHz
MAXIMUM POWER
20mA MAX
TO
DOWNCONVERTER
FROM
DOWNCONVERTER
TUNE VOLTAGE
OUT OF LOCK
<
100kHz
ANALYZERANALYZER
RF ANALYZER
PHASE DET OUTPUT
MONITOR
+
15dBm MIN
50kHz- 1600MHz
+
7dBm MIN
1.2- 26.5GHz
REF INPUT
ERRACT
STATUS
SRQTLKLSN
GPIB
RMT
NOISE
0.01Hz- 100MHz
1V Pk
50
50kHz- 26.5 GHz
INPUT
SIGNAL
POSSIBLE
SIGNAL INPUT
0VDC MAX
<
100MHz
50
50kHz-1600 MHz
+
23dBm
+
ATTEN
1.2GHz-26.5GHz
+
10dBm
+
ATTEN
+
30dBm MAX WITH
ATTENUATOR
MAXIMUM POWER
+
30dBm
OUTPUT POWER
POWER
N5500A Opt 001
Test Set
OUTPUT
RF ANALYZER
1.8-18GHz
AUX LOIF
5-1500MHz
ANALYZER
FROM TEST SET 10 VOLTS MAX
CONTROL
VOLTAGE
5MHz-18GHz
+
5-
+
15dBm
SIGNAL
INPUT
RMT LSN TLK SRQ ERRACT
STATUSGPIB
5MHz-1GHz
+
10dBm
1GHz-18 GHz
+
15dBm
MAXIMUM POWER
0VDC MAX
SIGNAL INPUT
POWER
N5502A
Downconverter
Test set Opt. 001
Spectrum analyzer
Optional reference
signal generator
E5500 software
License key
PC-Digitizer card
Digitizer
input
To test set
rear panel
CHIRP source
Digitizer
output
Optional frequency
counter
Oscilloscope
(recommended)
GPIB
GPIB
Indicates optional cable
NOTE:
Display
Test set Opt. 001
Spectrum
analyzer
To P C
digitizer
To reference
source (optional)
To oscilloscope or
counter monitor
(optional)
DC out
tune voltage
(optional)
E5505a_opt001_conn_dia
14 Apr 04 rev 1
Downconverter
Downconverter
50 Ω load
Signal input
to be
downconverted
Downconverted
output to test set
signal input
PC
