386 Agilent E5505A User’s Guide
16
Reference Graphs and Tables
How to access special functions
Press the Special key and enter the special function number of your choice.
Access the special function key by pressing the Enter key. Press the [ON]
(ENTER) key to terminate data entries that do not require specific units (kHz,
mV, rad, for example)
Example:
[Special], [1], [2], [0], [ON] (Enter).
Table 65 Operating characteristics for 8665B modes 2 and 3
Characteristic Synthesis Mode
Mode 2 Mode 3
RF Frequency Switching Time 200 ms 350 ms
FM Deviation at 1 GHz 1 MHz 100 kHz
Phase Noise (20 kHz offset at 1 GHz) -130 dBc -136 dBc

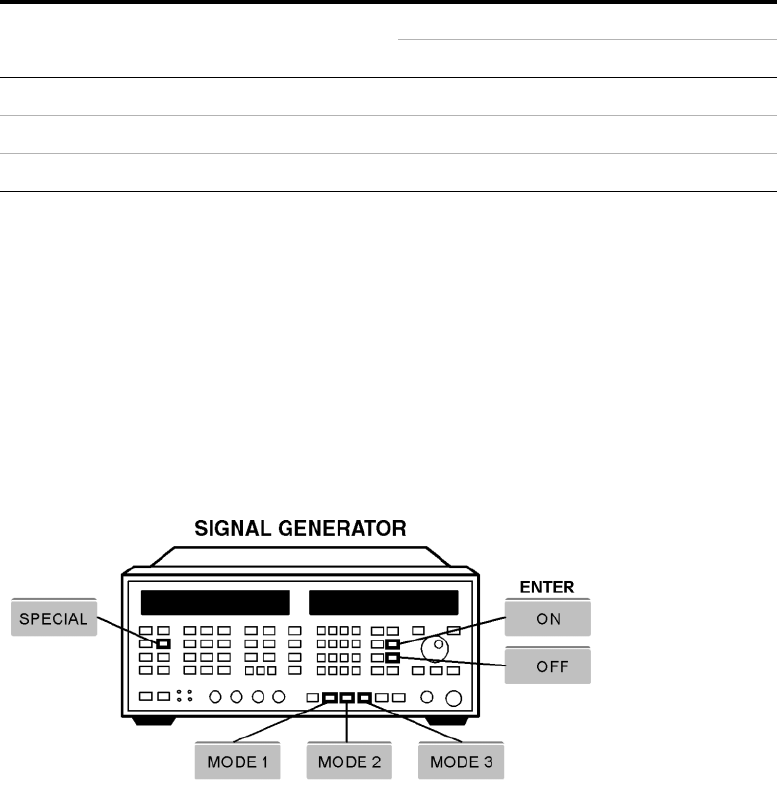

Figure 303 8665B Special functions keys
e5505a_8665B
rev1 24 jun 04
