Agilent E5505A User’s Guide 383

How to access special functions

Press the Special key and enter the special function number of your choice.

Access the special function key by pressing the Enter key. Press the [ON]

(ENTER) key to terminate data entries that do not require specific units (kHz,

mV, rad, for example)

Example:

[Special], [1], [2], [0], [ON] (ENTER).

Description of Special Functions 120 and 124

120: FM synthesis

This special function allows you to have the instrument synthesize the FM

signal in a digitized or linear manner. Digitized FM is best for signal-tone

modulation and provides very accurate center frequency at low deviation

rates. Linear FM is best for multi-tone modulation and provides a more

constant group delay than the Digitized FM. The preset condition is FM

Digitized.

Table 63 Operating characteristics for 8665A modes 2 and 3

Characteristic Synthesis Mode

Mode 2 Mode 3

RF Frequency Switching Time 200 ms 350 ms

FM Deviation at 1 GHz 1 MHz 100 kHz

Phase Noise (20 kHz offset at 1 GHz) -130 dBc -136 dBc

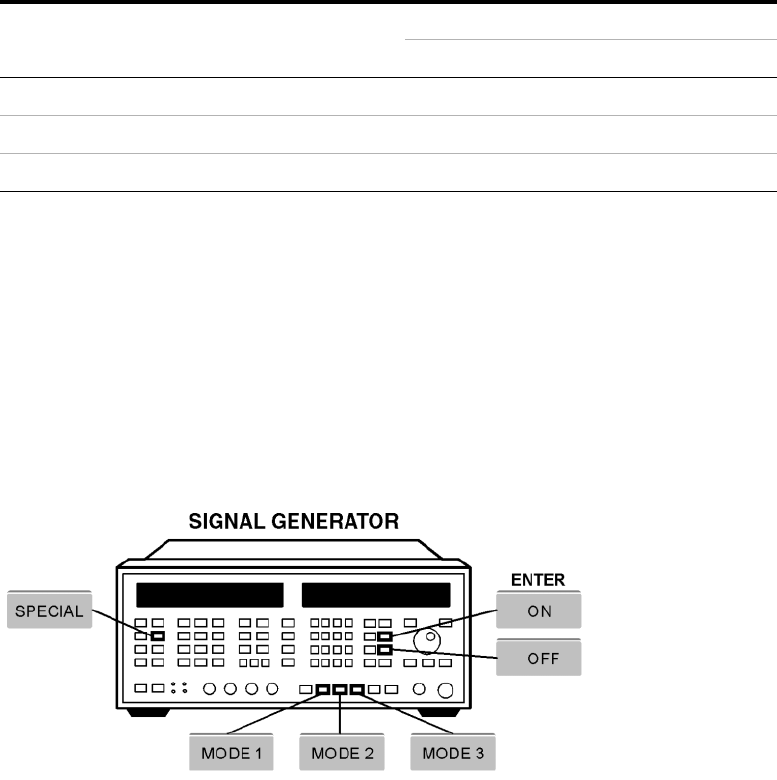

Figure 302 8665A special functions keys
