Reference Graphs and Tables
16
Agilent E5505A User’s Guide 381
How to access special functions
Press the Special key and enter the special function number of your choice.
Access the special function key by pressing the Enter key. Press the [ON]
(ENTER) key to terminate data entries that do not require specific units (kHz,
mV, rad, for example)
Example:
[Special], [1], [2], [0], [ON] (Enter)
Description of special functions 120
120: FM synthesis
This special function allows you to have the instrument synthesize the FM
signal in a digitized or linear manner. Digitized FM is best for signal-tone
modulation and provides very accurate center frequency at low deviation
rates. Linear FM is best for multi-tone modulation and provides a more
constant group delay than the Digitized FM.

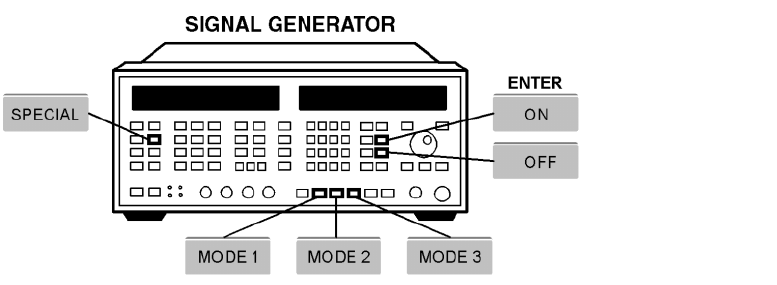

Figure 301 Special functions keys
e5505a_8664A
rev1 24 jun 04
