378 Agilent E5505A User’s Guide
16
Reference Graphs and Tables
How to access special functions
Press the Special key and enter the special function number of your choice.
Access the special function key by pressing the Enter key. Press the [ON]
(ENTER) key to terminate data entries that do not require specific units (kHz,
mV, rad, for example)
Example:
[Special], [1], [2], [0], [ON] (Enter).
Table 59 Operating characteristics for 8644B modes 1, 2, and 3
Characteristic Synthesis Mode
Mode 1 Mode 2 Mode 3
RF Frequency Switching Time 90 ms 200 ms 350 ms
FM Deviation at 1 GHz 10 MHz 1 MHz 100 kHz
Phase Noise (20 kHz offset at 1 GHz) -120 dBc -130 dBc -136 dBc

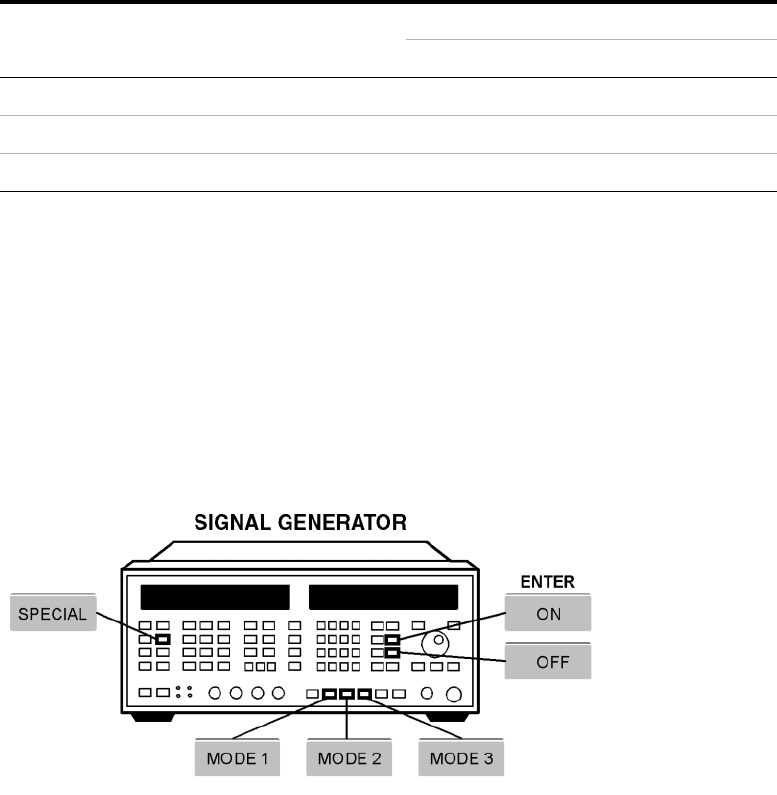

Figure 300 8644B special functions keys
e5505a_8644B
rev 1 24 jun 04
