Reference Graphs and Tables

Agilent E5505A User’s Guide 375

How to access special functions

Press the Special key and enter the special function number of your choice.

Access the special function key by pressing the Enter key. Press the [ON]

(ENTER) key to terminate data entries that do not require specific units (kHz,

mV, rad, for example)

Example:

[Special], [1], [2], [0], [ON] (Enter).

Description of special functions 120 and 125

120: FM synthesis

This special function allows you to have the instrument synthesize the FM

signal in a digitized or linear manner. Digitized FM is best for signal-tone

modulation and provides very accurate center frequency at low deviation

rates. Linear FM is best for multi-tone modulation and provides a more

constant group delay than the Digitized FM.

Table 57 Operating characteristics for 8643A modes 1, 2, and 3

Characteristic Synthesis Mode

Mode 1 Mode 2

RF Frequency Switching Time 90 ms 200 ms

FM Deviation at 1 GHz 10 MHz 1 MHz

Phase Noise (20 kHz offset at 1 GHz) –120 dBc –130 dBc

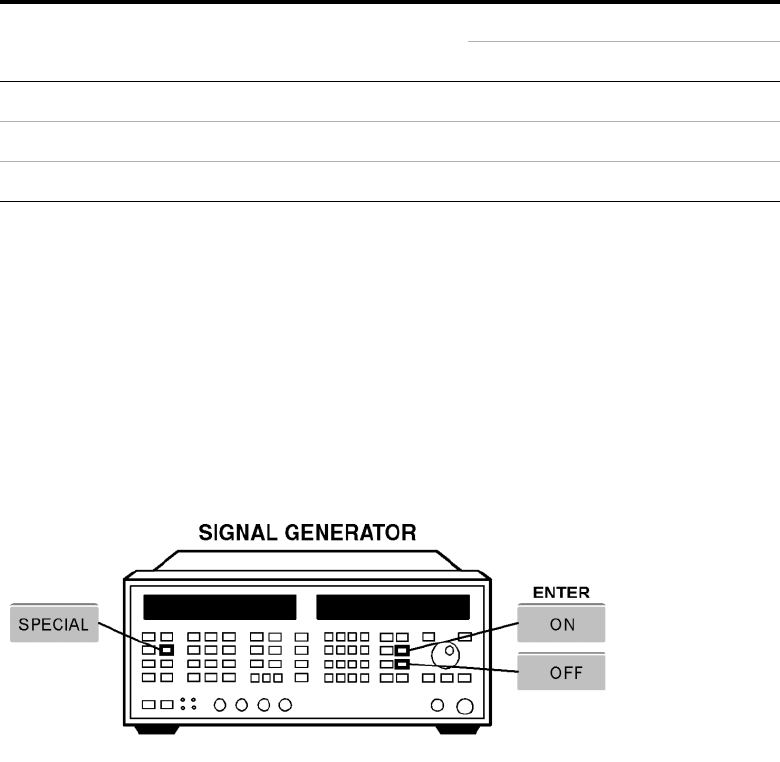

Figure 299 8643A special function keys

e5505a_8643A

rev1 24 jun 04
