372 Agilent E5505A User’s Guide
16
Reference Graphs and Tables
Noise Floor Limits Due to Peak Tuning Range

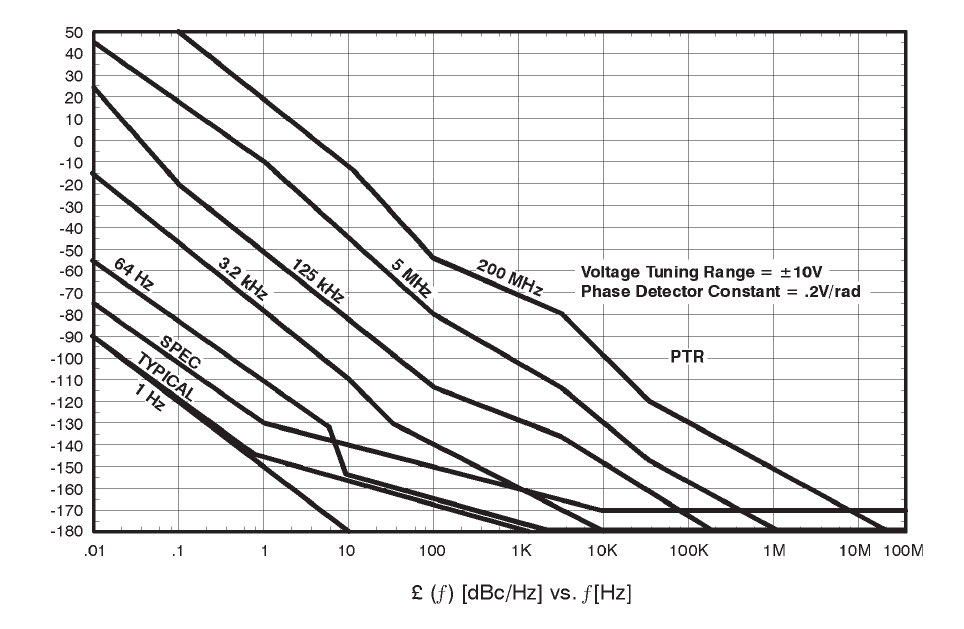

The graph in Figure 298 illustrates the equivalent phase noise at the Peak
Tuning Range entered for the source due to the inherent noise at the test set
Tune Voltage Output port. (A Tune Range of VCO ±10 V and phase Detector
Constant of 0.2V/Rad is assumed.)
Figure 298 Noise at source’s peak tuning range
e5505a_user_noise_floor_peak.ai
rev2 10/28/03
