370 Agilent E5505A User’s Guide
16
Reference Graphs and Tables
Peak Tuning Range Required by Noise Level

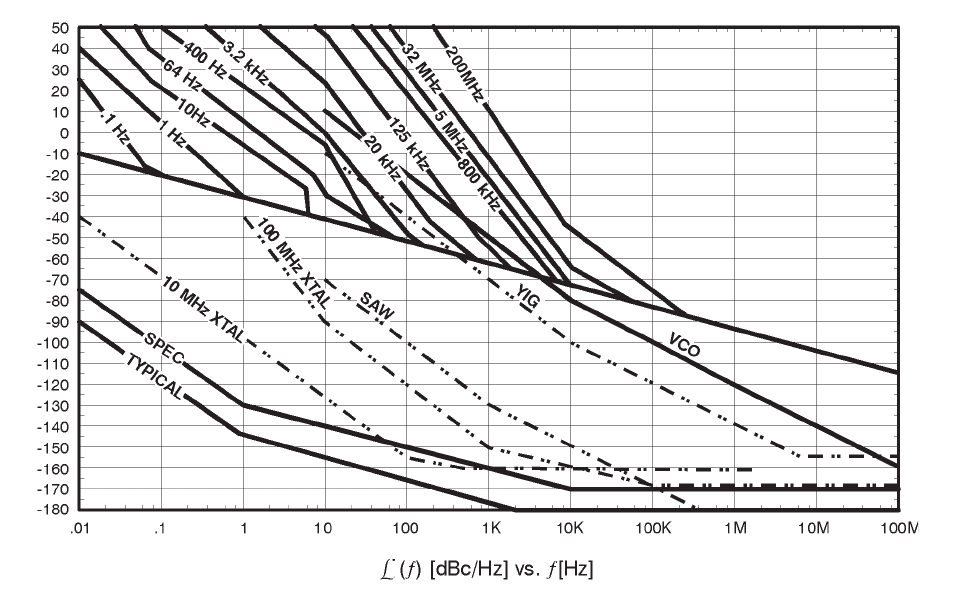

The graph in Figure 296 provides a comparison between the typical phase
noise level of a variety of sources and the minimum tuning range that is
necessary for the test system to create a phase lock loop of sufficient
bandwidth to make the measurement. Sources with higher phase noise require
a wider Peak Tuning Range.
Figure 296 Typical source noise level vs. minimum tuning range
e5505a_user_peak_tune_range.ai
rev2 10/24/03
