Agilent E5505A User’s Guide 369

Tune Range of VCO for Center Voltage

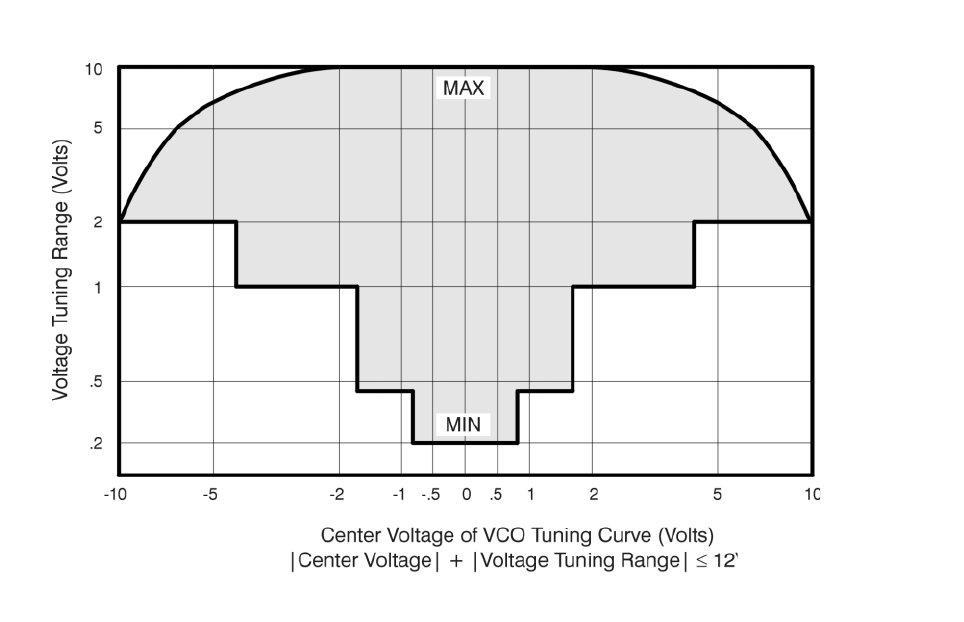

The graph in Figure 295 outlines the minimum to maximum Tune Range of

VCO that the software provides for a given center voltage. The Tune range of

VCO decreases as the absolute value of the center voltage increases due to

hardware limitations of the test system.

Figure 295 Tune range of VCO for center voltage

e5505a_user_tune_range_VCO.ai

rev2 10/24/03
