Advanced Software Features

Agilent E5505A User’s Guide 355

Blanking Frequency and Amplitude Information on the Phase Noise Graph

Security level procedure

From the Define Menu, choose Security Level. See Figure 280.

Choose one of the security options provided:

• Unsecured: all data is viewable

• Secured: Frequencies cannot be viewed

• Secured: Frequencies and amplitudes cannot be viewed

CAUTION

Implementing either of the “secured” levels described in this section is not

reversible. Once the frequency or frequency/amplitude data has been blanked, it

can not be recovered. If you need a permanent copy of the data, you can print out

the graph and parameter summary before you secure the data and store the printed

data to a secured location

NOTE

An alternate method of storing classified data is to save the measurement test file (*.pnm),

including the real frequency/amplitude data onto a floppy diskette and securing the

diskette. It can then be recalled at a later data

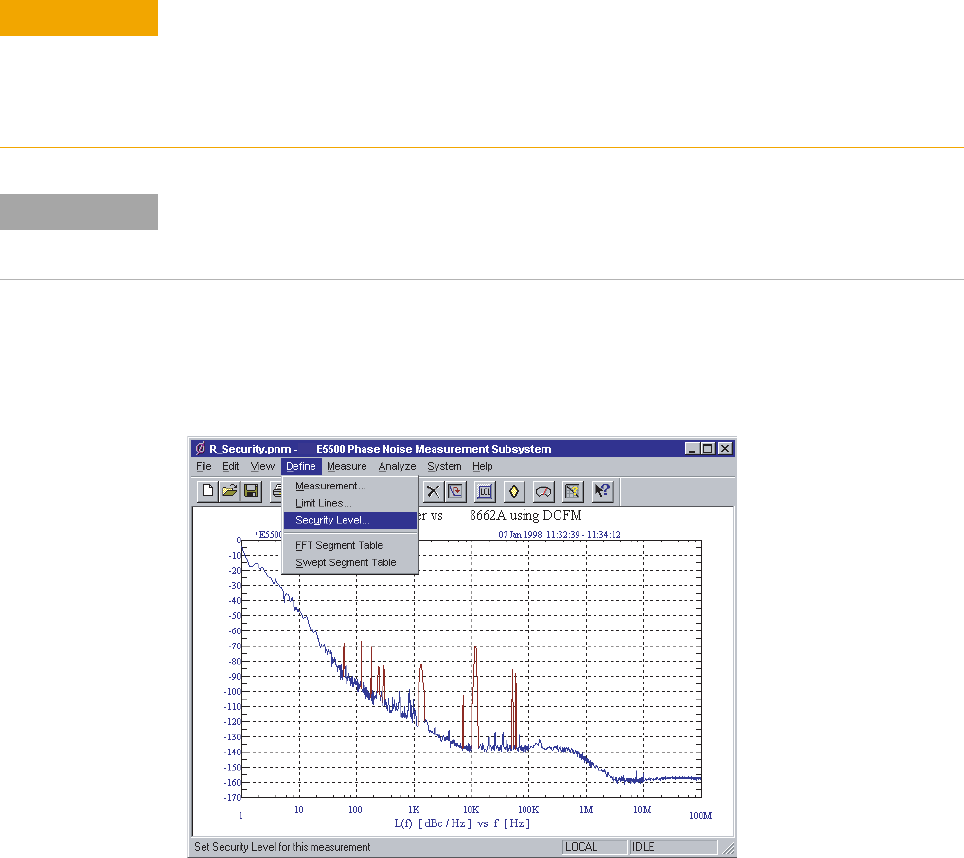

Figure 280 Navigate to security level
