Evaluating Your Measurement Results
Omit Spurs
Omit Spurs plots the currently loaded results without displaying any spurs
that may be present.
1
On the View menu, click Display Preferences. See Figure 266.
2
In the Display Preferences dialog box, uncheck Spurs. See Figure 267.
Click OK.
3
The Graph will be displayed without spurs (Figure 268 on page 335). To
re-display the spurs, check Spurs in the Display Preferences dialog box.

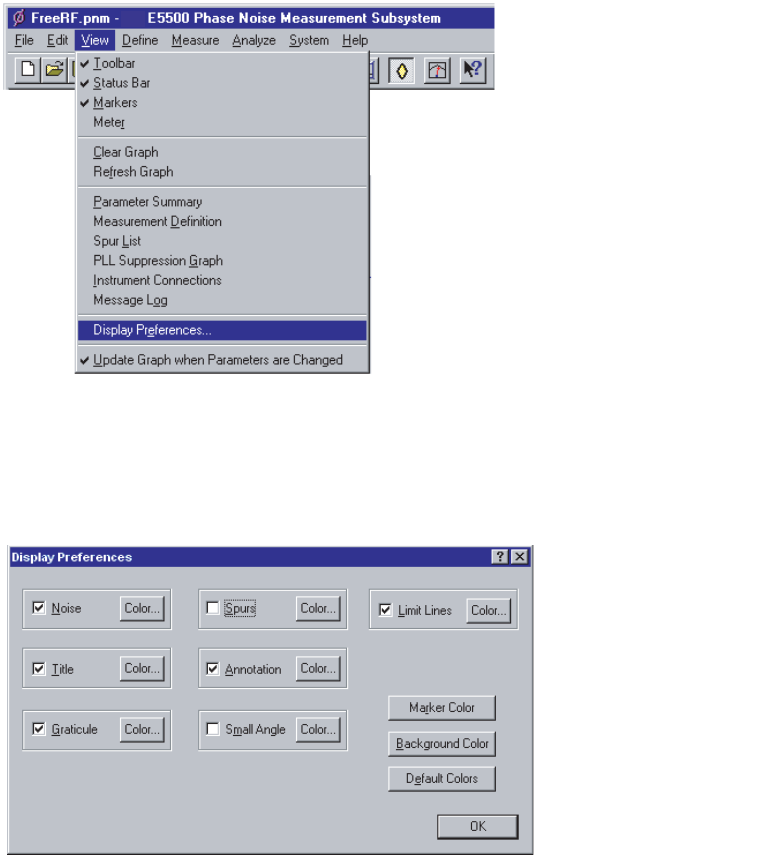

Figure 266 Select display preferences
Figure 267 Uncheck spurs
