332 Agilent E5505A User’s Guide
14
Evaluating Your Measurement Results
Graph of Results
Use the Graph of Results to display and evaluate your measurement results.
The Graph of Results screen is automatically displayed as a measurement is
being made. However, you can also access the Graph of Results functions from
the main graph menu. You can load a result file using the File/System
functions, and then display the results.
The following functions are available to help you evaluate your results:
• “Marker" on page 332
• “Omit Spurs" on page 334
• “Parameter summary" on page 335
Marker
The marker function allows you to display the exact frequency and amplitude
of any point on the results graph. To access the marker function:
1
On the View menu, click Markers. See Figure 264.
2
To remove the highlighted marker, click the Delete button. You may add as
many as nine markers. See Figure 265 on page 333.

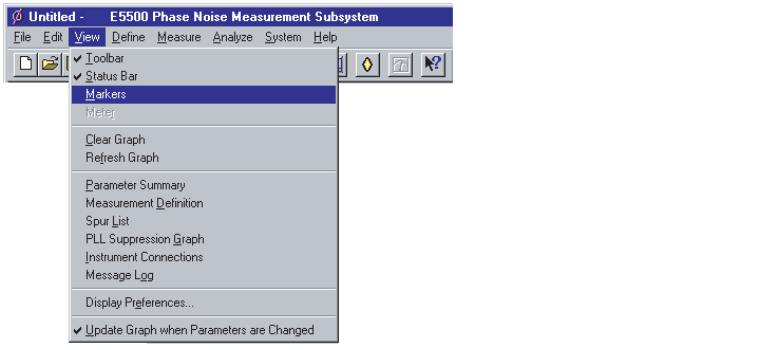

Figure 264 Navigate to marker
e5505a_user_nav_markers
24 Jun 04 rev 3
