Baseband Noise Measurement Examples
13
Agilent E5505A User’s Guide 321
Beginning the measurement
1
From the Measurement menu, choose New Measurement See Figure 255.
.
2
When the Do you want to perform a New Calibration and Measurement?
prompt appears, click Yes.
3
The Instrument Connection dialog box appears. (See Figure 258 on
page 322.) At this time, connect your DUT and an FFT analyzer with the
system as shown in Figure 257 on page 321.

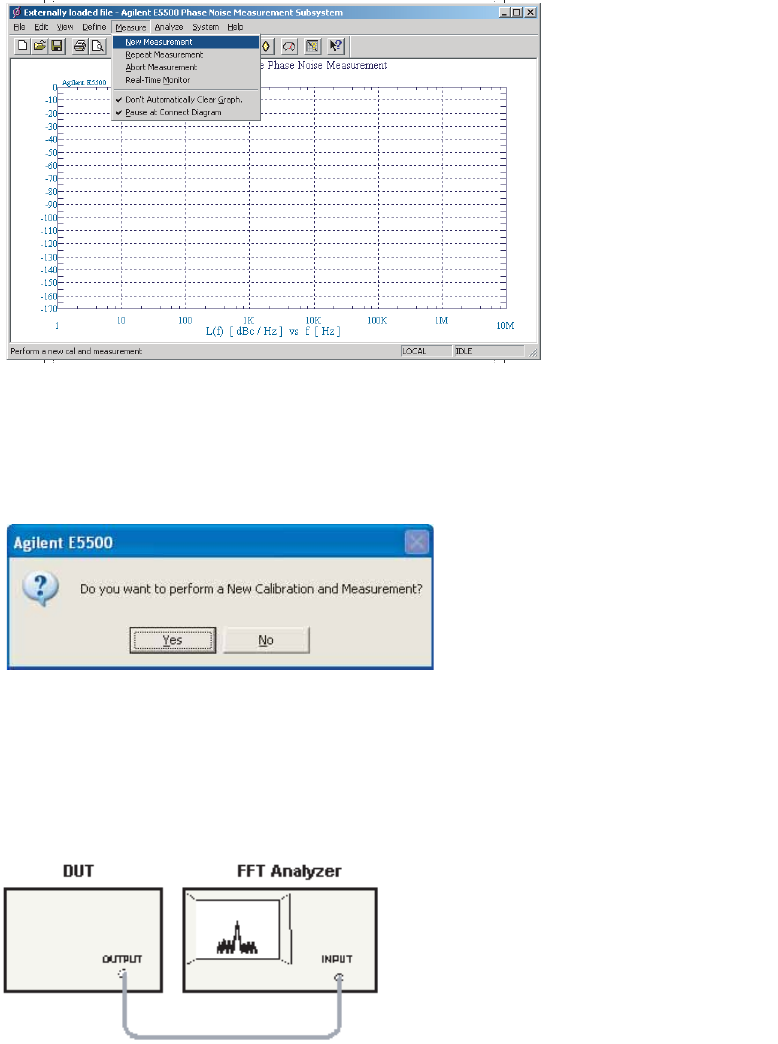

Figure 255 Selecting a new measurement
Figure 256 Confirm measurement dialog box
Figure 257 Connect diagram for baseband without test set measurement
