Baseband Noise Measurement Examples
13
Agilent E5505A User’s Guide 317
Beginning the measurement
1
From the Measurement menu, choose New Measurement See Figure 250.
.
2
When the Do you want to perform a New Calibration and Measurement?
prompt appears, click Yes.
3
When the Connect Diagram dialog box appears, click on the hardware
drop-down arrow and select “N5500A option 001 test set only”
configuration from the list. See Figure 252 on page 318.

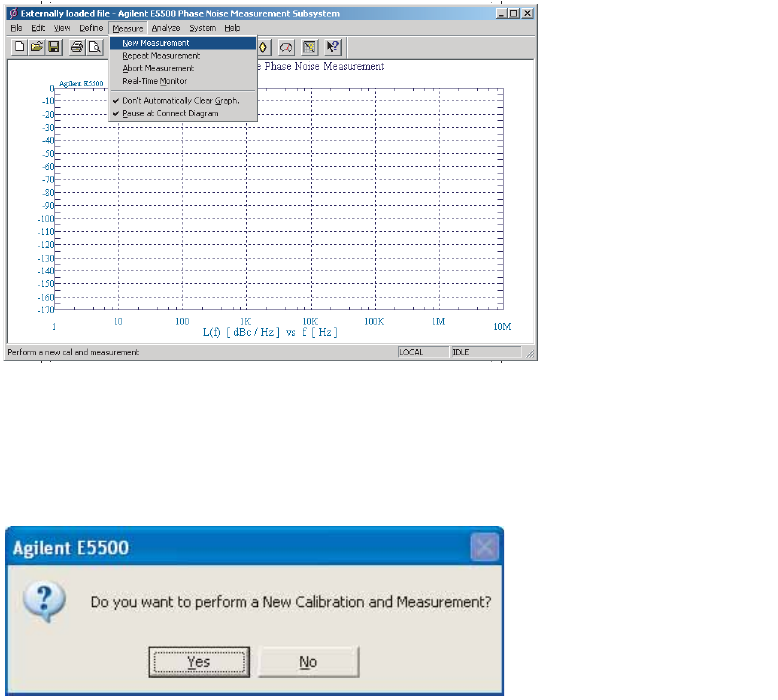

Figure 250 Selecting a new measurement
Figure 251 Confirm measurement dialog box
