316 Agilent E5505A User’s Guide
13
Baseband Noise Measurement Examples
Baseband Noise with Test Set Measurement Example
This measurement example will help you measure the noise voltage of a
source.
Defining the measurement
1
From the File menu, select Open.
2
If necessary, choose the drive or directory where the file you want is stored.
3
In the File Name box, choose “BBnoise_with_testset.pnm.” See Figure 249
4
Click the Open button. The appropriate measurement definition
parameters for this example have been pre-stored in this file. (Table 49 on
page 319) lists the parameter data that has been entered for this
measurement example.
NOTE
To ensure accurate measurements allow the DUT and measurement equipment to warm
up at least 30 minutes before making the noise measurement.

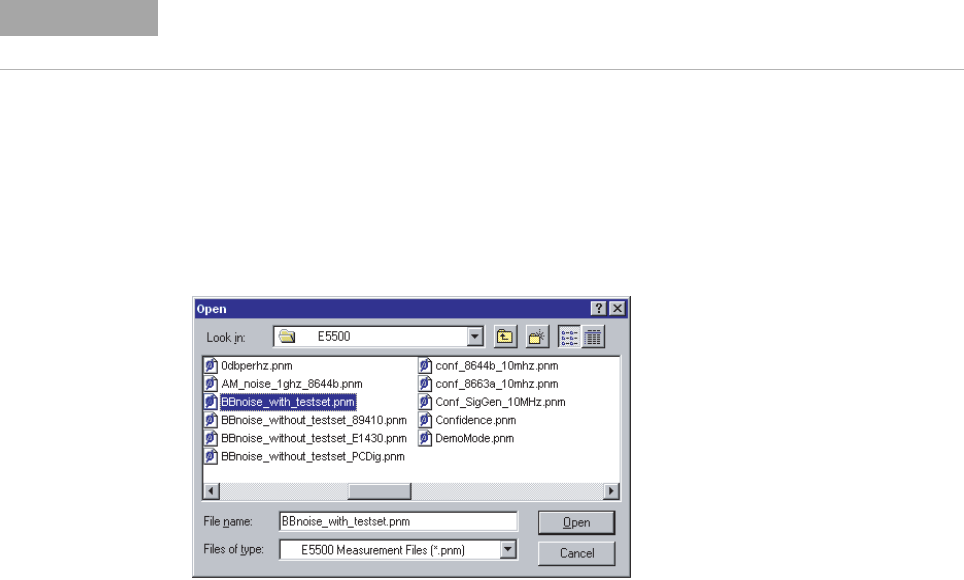

Figure 249 Select the parameters definition file
