AM Noise Measurement Examples
12
Agilent E5505A User’s Guide 311
Figure 247 shows the system interconnections.
Table 47 Test set signal input limits and characteristics
Limits
Frequency
•
50 kHz to 1.6 GHz (Std.)
•
50 kHz to 26.5 GHz (Option 001)
•
50 kHz to 26.5 GHz (Option 201)
Maximum Signal Input Power Sum of the reference and signal input power
shall not exceed +23 dBm
At Attenuator Output, Operating Level Range:
•
RF Phase Detectors
•
0 to +23 dBm (Signal Input)
•
+15 to +23 dBm (Reference Input)
•
Microwave Phase Detectors
•
0 to +5 dBm (Signal Input)
•
+7 to +10 dBm (Reference Input)
•
Internal AM Detector 0 to +20 dBm
Downconverters:
•
Agilent N5502A/70422A +5 to +15 dBm
•
Agilent N5507A/70427A 0 to +30 dBm
Characteristics
Input Impedance 50 Ω nominal
AM Noise DC coupled to 50 Ω load

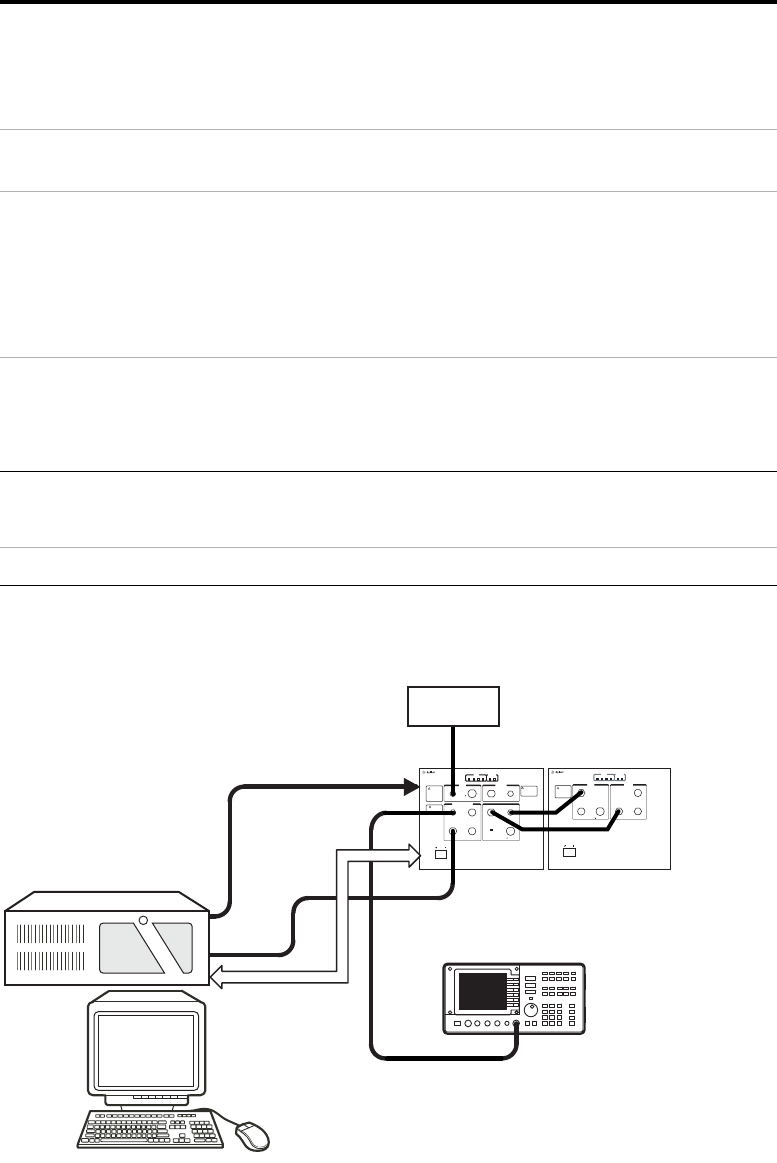

Figure 247 Connect diagram example
+
23dBm
1.2-26.5GHz
+
10dBm
50kHz-1600 MHz
MAXIMUM POWER
20mA MAX
TO
DOWNCONVERTER
FROM
DOWNCONVERTER
TUNE VOLTAGE
OUT OF LOCK
<
100kHz
ANALYZERANALYZER
RF ANALYZER
PHASE DET OUTPUT
MONITOR
+
15dBm MIN
50kHz- 1600MHz
+
7dBm MIN
1.2- 26.5GHz
REF INPUT
ERRACT
STATUS
SRQTLKLSN
GPIB
RMT
NOISE
0.01Hz- 100MHz
1V Pk
50
50kHz- 26.5 GHz
INPUT
SIGNAL
POSSIBLE
SIGNAL INPUT
0VDC MAX
<
100MHz
50
50kHz-1600 MHz
+
23dBm
+
ATTEN
1.2GHz-26.5GHz
+
10dBm
+
ATTEN
+
30dBm MAX WITH
ATTENUATOR
MAXIMUM POWER
+
30dBm
OUTPUT POWER
POWER
N5500A Opt 001
Test Set
OUTPUT
RF ANALYZER
1.8-18GHz
AUX LOIF
5-1500MHz
ANALYZER
FROM TEST SET 10 VOLTS MAX
CONTROL
VOLTAGE
5MHz-18GHz
+
5-
+
15dBm
SIGNAL
INPUT
RMT LSN TLK SRQ ERRACT
STATUSGPIB
5MHz-1GHz
+
10dBm
1GHz-18 GHz
+
15dBm
MAXIMUM POWER
0VDC MAX
SIGNAL INPUT
POWER
N5502A
Downconverter
Test set
Opt. 001
Downconverter
e5505a_user_sys_interconnect_dia
27 Jun 04 rev 1
Spectrum analyzer
Digitizer
input
Digitizer
output
GPIB
Display
PC
To test set rear panel
CHIRP input
DUT
