AM Noise Measurement Examples
12
Agilent E5505A User’s Guide 309
3
When the Connect Diagram dialog box appears, click on the hardware
drop-down arrow and select your hardware configuration from the list. See
Figure 246 on page 309.
4
Connect your DUT and reference sources to the test set at this time.
Confirm your connections as shown in the connect diagram.
• The input attenuator (Option 001 only) is now correctly configured based
on your measurement definition.

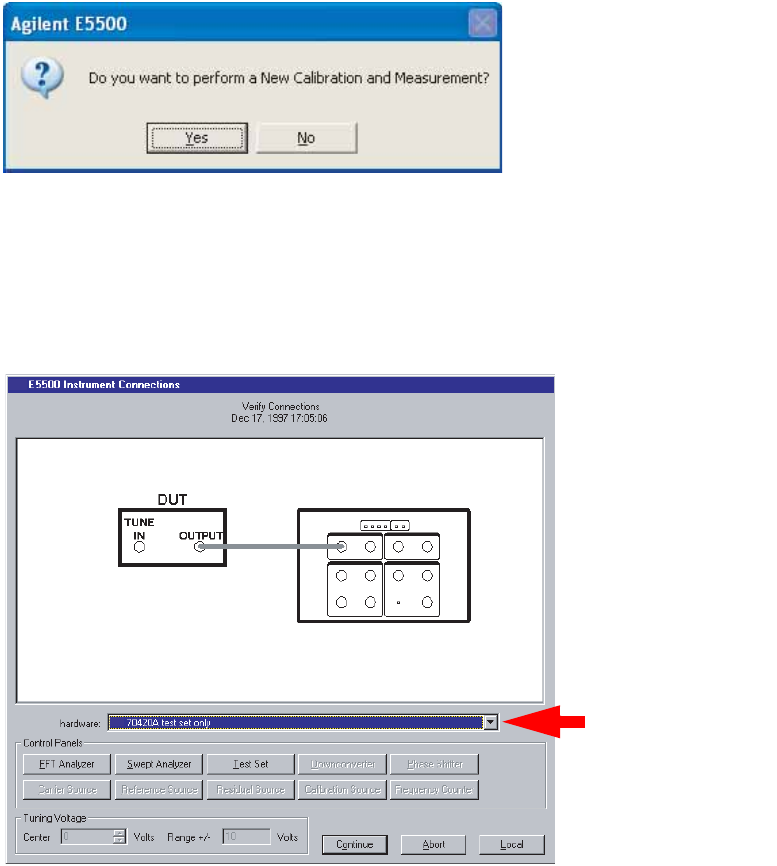

Figure 245 Confirm measurement dialog box
Figure 246 Connect diagram for the AM noise measurement
0 diAMi
