AM Noise Measurement Examples
12
Agilent E5505A User’s Guide 307
10
Select Use automatic internal self-calibration as the calibration method.
See Figure 241. For more information about various calibration techniques,
refer to Chapter 11, “AM Noise Measurement Fundamentals.
11
Choose the Block Diagram tab from the Define Measurement window.
12
From the Phase Detector pull-down, select AM Detector. See Figure 242.
13
Choose the Graph tab from the Define Measurement window.
14
Enter a graph description of your choice. See Figure 243.

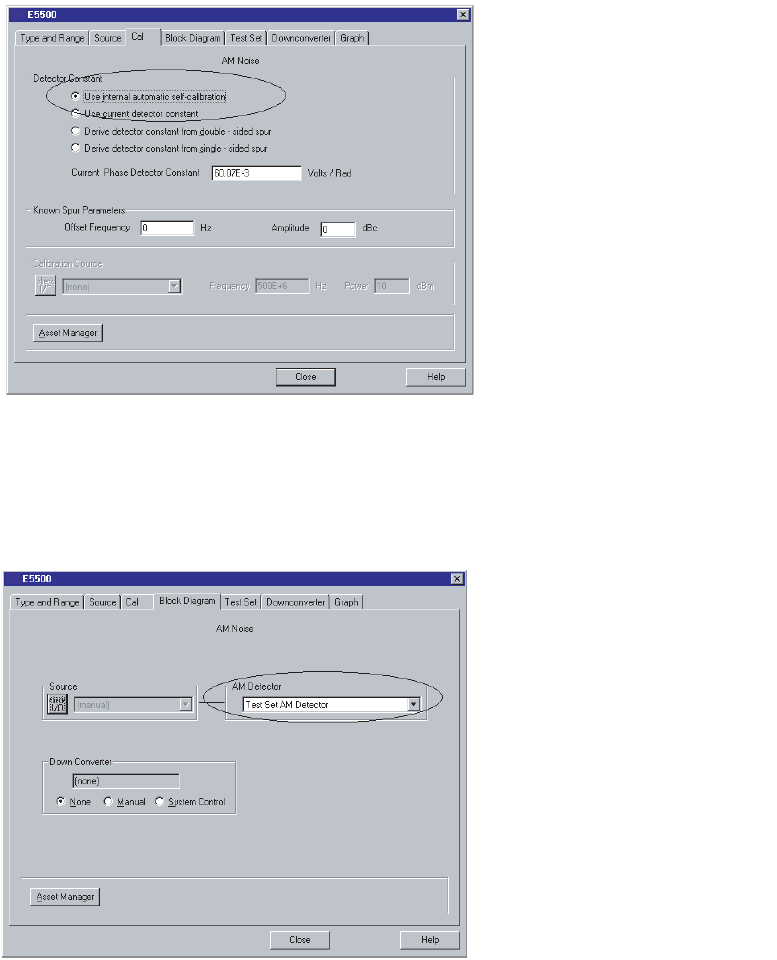

Figure 241 Enter parameters into the cal tab
Figure 242 Select parameters in the block diagram tab
5505 l blk d
