AM Noise Measurement Examples
12
Agilent E5505A User’s Guide 305
3
In the File Name box, choose “AM_noise_1ghz_8644b.pnm.” See
Figure 238.
4
Click the Open button.
• The appropriate measurement definition parameters for this example
have been pre-stored in this file. Table 48 on page 313 lists the
parameter data that has been entered for this measurement example.
5
From the Define menu, choose Measurement; then choose the Type and
Range tab from the Define Measurement window.
6
From the Measurement Type pull-down, select AM Noise. See Figure 239 on
page 306

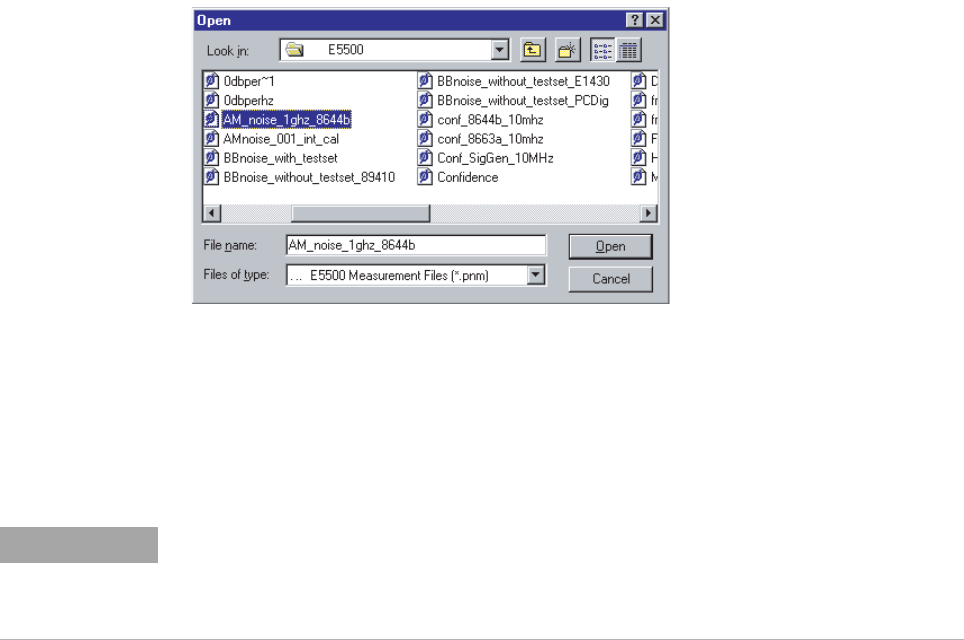

Figure 238 Select the parameters definition file
NOTE
The amplitude of a source under system control, for an AM noise measurement, will
automatically be set to +10 dBm. If any other amplitude is desired, the source should be
placed under manual control. All other measurements set the source to +16 dBm
automatically.
