AM Noise Measurement Fundamentals

Agilent E5505A User’s Guide 301

Method 3: Single-Sided Spur

Advantages

• Will measure source without modulation capability.

• Calibration is done under actual measurement conditions so all

non-linearities and harmonics of the AM detector are calibrated out. The

double-sided spur method and the single-sided-spur method are the two

most accurate methods for this reason.

Disadvantages

• Requires 2 RF sources, which must be between 10 Hz and 40 MHz apart in

frequency.

• Requires an RF spectrum analyzer for manual measurement of the

signal-to-spur ratio and spur offset.

Procedure

Connect circuit as shown in Figure 234, and tighten all connections. If the

N5500A Option 001 or N5507A is available, use one of the connection

diagrams described in “AM noise measurement block diagrams" on

page 287.

Measure the power which will be applied to the AM detector. It must be

between 0 and +23 dBm.

Measure the carrier-to-single-sided-spur ratio and the spur offset at the

input to the AM detector with an RF spectrum analyzer. See Figure 235 on

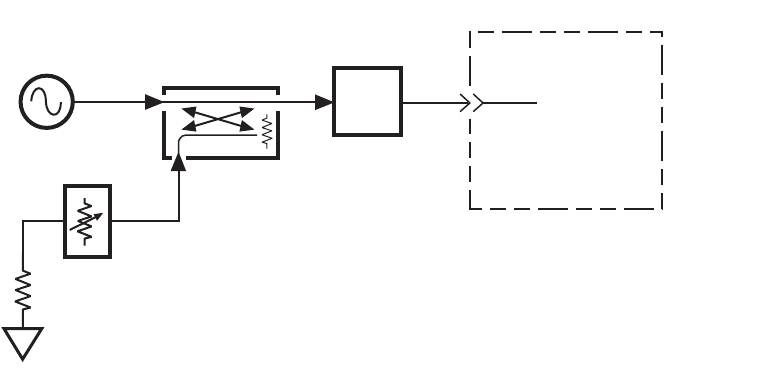

Figure 234 AM noise measurement setup using single-sided spur

DUT

E5505a_am_noise_meas_single

02 Mar 04 rev 1

AM detector

Test set

Noise

input

-10 dB

attenuator

50Ω

-20 dB

coupler
