30 Agilent E5505A User’s Guide

Getting Started

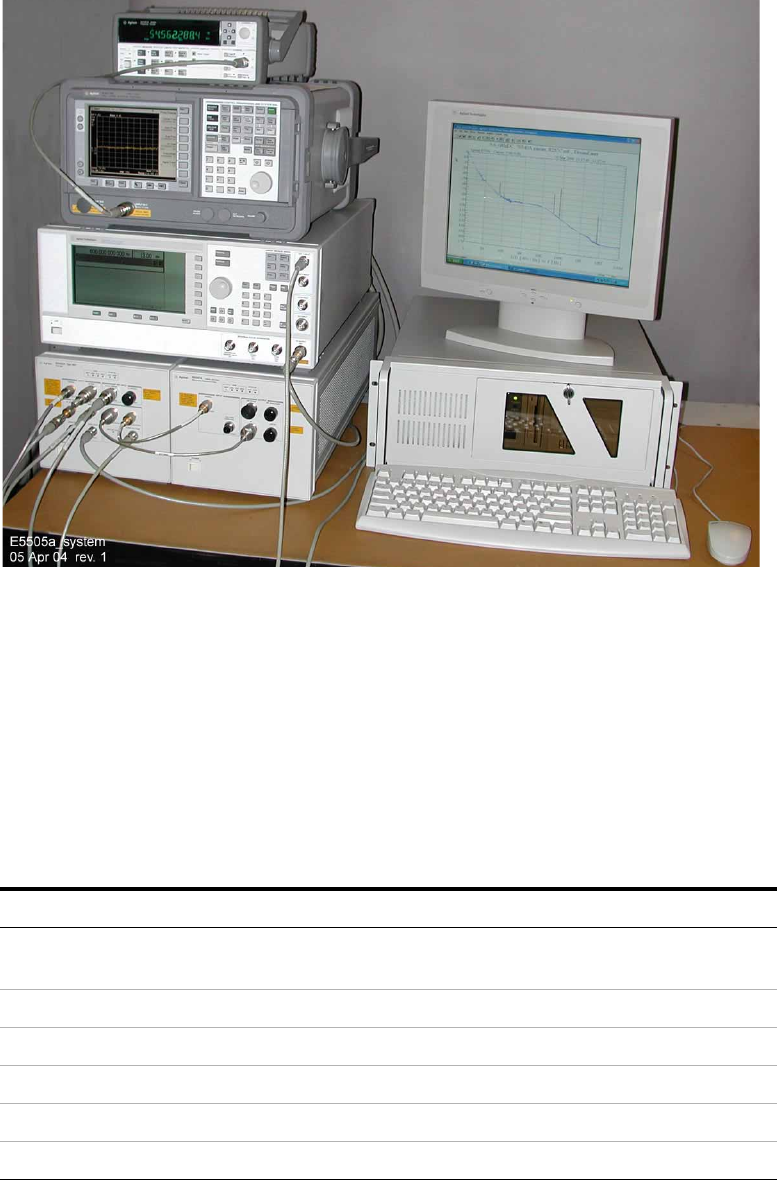

Figure 2 shows a typical configuration of an E5505A benchtop system.

The E5505A replaces earlier Agilent E5500A/B series phase noise systems,

which are based on MMS technology. The E5505A system uses GPIB

communication and certain instruments have been redesigned with GPIB

functionality. However, the E5505A system and E5500 software are backwards

compatible with earlier systems and instruments, including the MMS

mainframe. You may easily integrate existing assets into your E5505A system.

Table 2 shows the E5505A instruments and earlier-model equivalents.

Figure 2 E5505A benchtop system, typical configuration

Table 2 Equivalent system/instrument model numbers

System or Instrument New Number Old Number

Phase noise measurement

system

E5505A E5501A, E5501B, E5502B,

E5503A, E5503B, E5504A, E5504B

Test set N5500A 70420A

6.6 GHz downconverter N5501A 70421A

18 GHz downconverter N5502A 70422A

26.5 GHz downconverter N5507A 70427A, 71707A

Microwave source N5508A 70428A, 71708A
