AM Noise Measurement Fundamentals
11
Agilent E5505A User’s Guide 299
between –30 and –60 dB below the carrier with a modulation rate between
10 Hz and 20 MHz.
To check the AM performance of the source, measure the carrier-to-sideband
ratio of the AM at the source output with a modulation analyzer. See
Figure 232.
4
Enter the carrier-to-sideband ratio and offset frequency, then measure the
calibration constant. See Figure 233.
5
Remove the AM source and reconnect the DUT.
6
Measure noise data and interpret the results.
NOTE
The carrier-to-sideband ratio for AM is:
C
sb
-----
C
b
----
20
percentAM
100
-----------------------------
log 6dB==

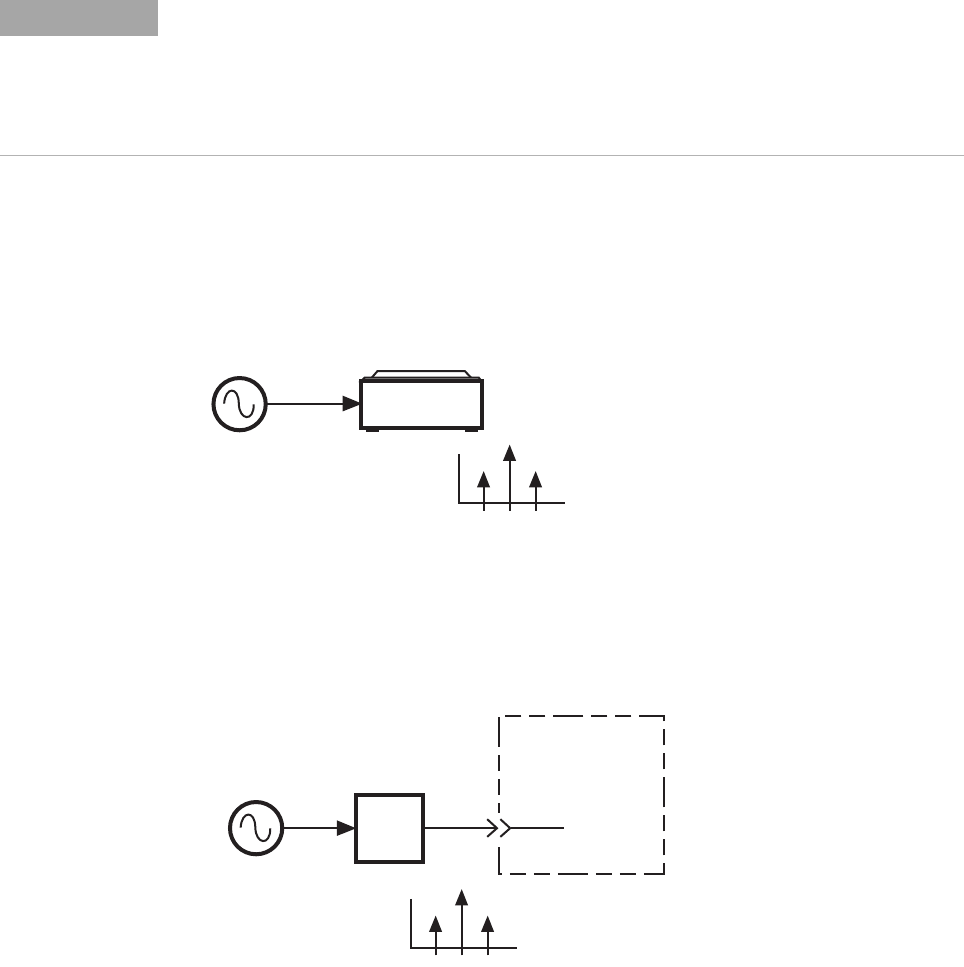

Figure 232 Measuring carrier-to-sideband ratio
Figure 233 Measuring the calibration constant
E5505a_meas_car_side_ratio
02 Mar 04 rev 1
Source
Modulation
analyzer
DUT with AM
E5505a_meas_cal_constant
02 Mar 04 rev 1
AM detector
Noise
input
Test set
