298 Agilent E5505A User’s Guide

AM Noise Measurement Fundamentals

Method 2, example 2

Advantages

• Will measure source without modulation capability

• Calibration is done under actual measurement conditions so all

non-linearities and harmonics of the AM detector are calibrated out. The

double-sided spur method and the single-sided-spur method are the two

most accurate methods for this reason.

Disadvantages

• Requires a second RF source with very accurate AM modulation and output

power sufficient to match the DUT. If the AM modulation is not very

accurate, a modulation analyzer must be used to make manual

measurement of the AM sidebands.

Procedure

Connect circuit as shown in Figure 230, and tighten all connections. If the

N5500A Option 001 or N5507A is available, use one of the connection

diagrams described in “AM noise measurement block diagrams" on

page 287.

Measure the power which will be applied to the AM detector (Figure 231). It

must be between 0 and +23 dBm.

Using a source with AM, set its output power equal to the power measured

in step 2. The source should be adjusted such that the sidebands are

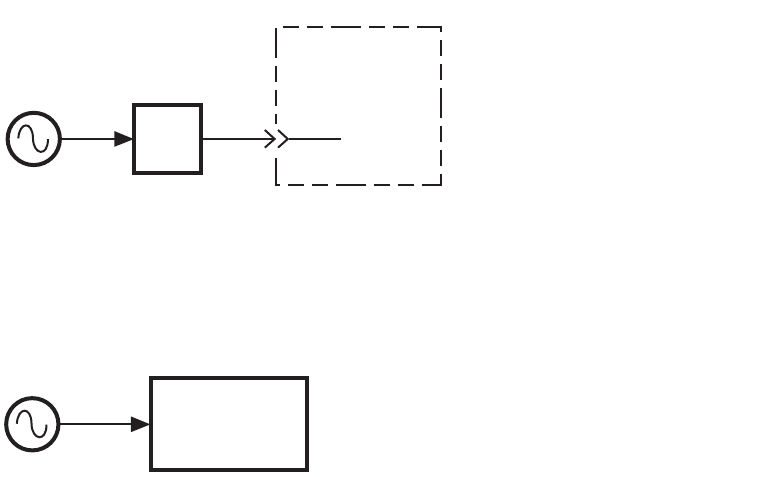

Figure 230 Double-sided spur AM noise setup (method 2, example 2)

Figure 231 Measuring power at the am detector

DUT

AM detector

Noise

input

Test set

DUT

Power meter

or RF spectrum

analyzer
