AM Noise Measurement Fundamentals
11
Agilent E5505A User’s Guide 297
4
Reconnect the AM detector and enter the carrier-to-sideband ratio and
modulation frequency.
5
Measure the AM detector calibration constant (Figure 229).
.
6
Turn off AM.
7
Measure noise data and interpret the results.
NOTE
The carrier-to-sideband ratio for AM is:
C
sb
-----
C
sb
-----
20
percentAM
100
-----------------------------
log 6dB==

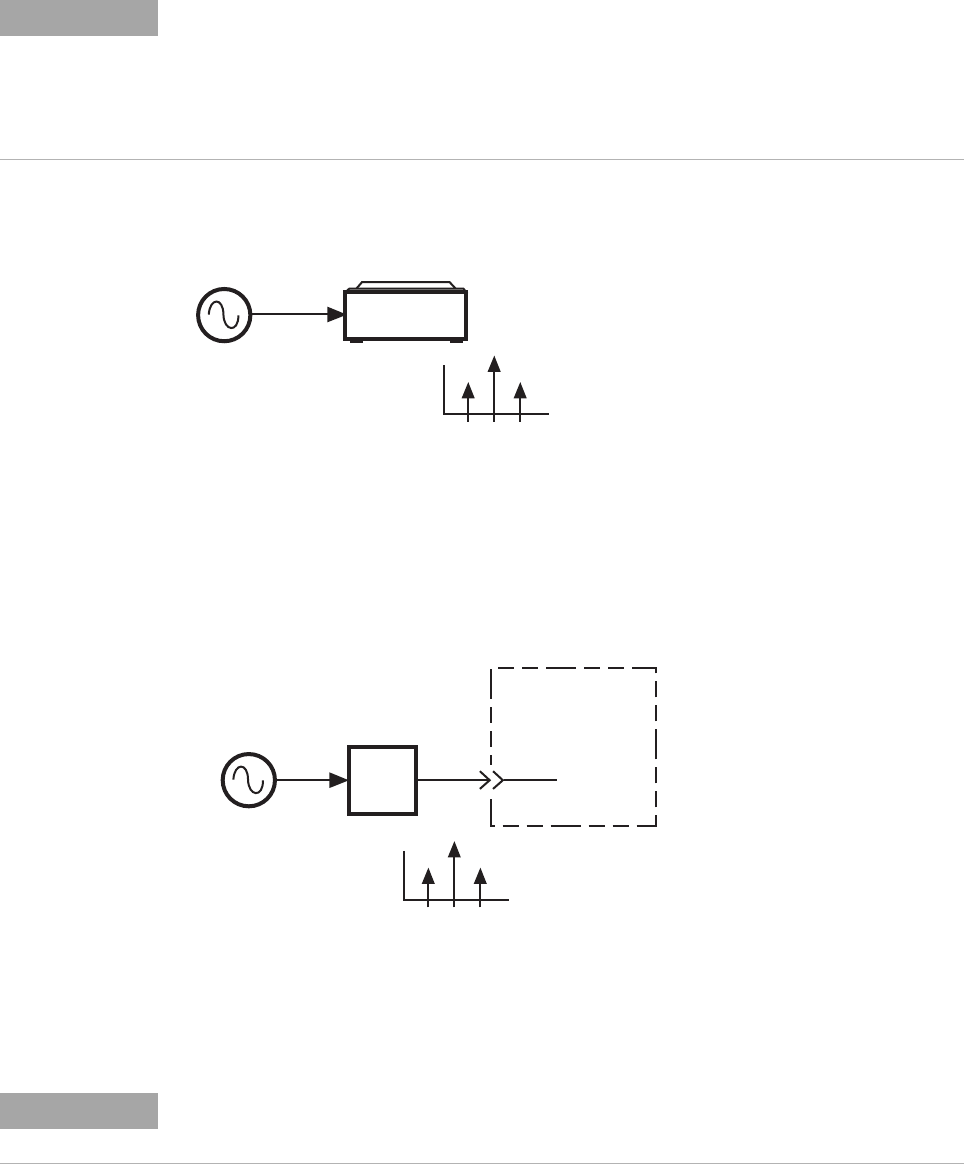

Figure 228 Measuring the carrier-to-sideband ratio
Figure 229 Measuring the calibration constant
E5505a_meas_car_side_ratio
02 Mar 04 rev 1
Source
Modulation
analyzer
DUT with AM
E5505a_meas_cal_constant
02 Mar 04 rev 1
AM detector
Noise
input
Test set
NOTE
The quadrature meter should be at zero volts due to the blocking capacitor at the AM
detector’s output.
