AM Noise Measurement Fundamentals
11
Agilent E5505A User’s Guide 295
3
Measure the monitor output voltage on the AM detector with an
oscilloscope or voltmeter. Locate the diode detector’s DC voltage along the
bottom of the AM sensitivity graph (Figure 224). Moving up to the diagonal
calibration line and over, the equivalent phase detector constant can then
be read from the left side of the graph. The measured data will be plotted as
single-sideband AM noise in dBc/Hz.
4
Measure noise data and interpret the results.

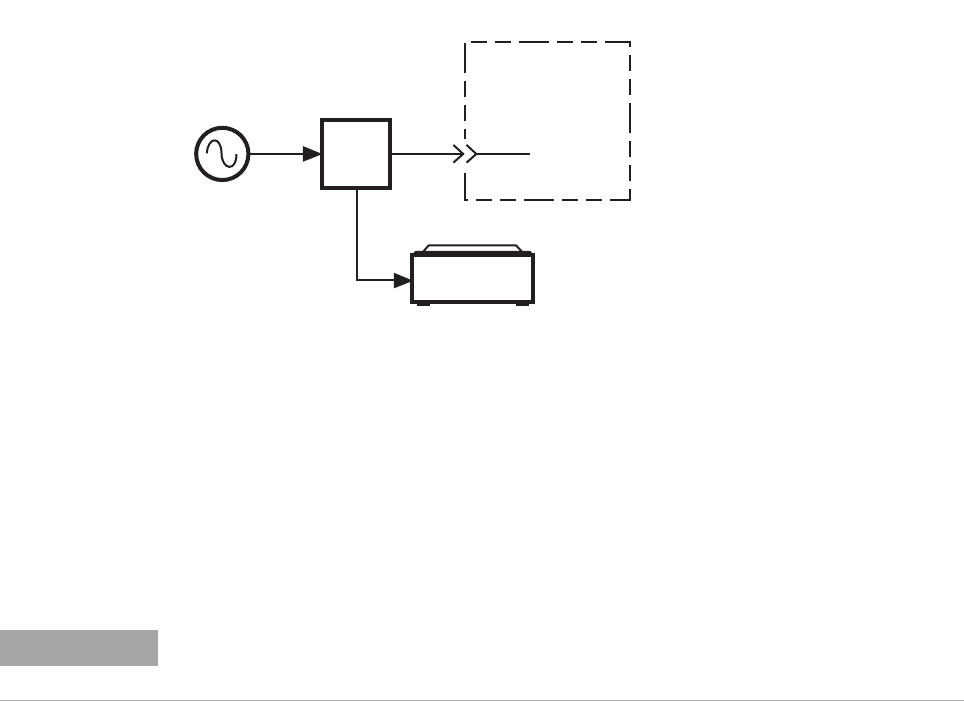

Figure 226 Modulation sideband calibration setup
DUT
E5505a_mod_sideband_cal
02 Mar 04 rev 1
AM detector
Noise
input
Test set
DVM or
oscilloscope
Diode voltage
monitor output
NOTE
The quadrature meter should be at zero volts due to the blocking capacitor at the AM
detector’s output.
