AM Noise Measurement Fundamentals
11
Agilent E5505A User’s Guide 287
Amplitude Noise Measurement
The level of amplitude modulation sidebands is also constant with increasing
modulation frequency. The AM detector gain can thus be measured at a single
offset frequency and the same constant will apply at all offset frequencies.
Replacing the phase detector with an AM detector, the AM noise measurement
can be calibrated in the same way as PM noise measurement, except the phase
modulation must be replaced with amplitude modulation.
The AM noise measurement is a characterization of a source. The residual AM
noise of a DUT can only be made by using a source with lower AM noise, then
subtracting that AM noise from the measured output noise of the DUT. The
noise floor of this technique is the noise floor of the source.

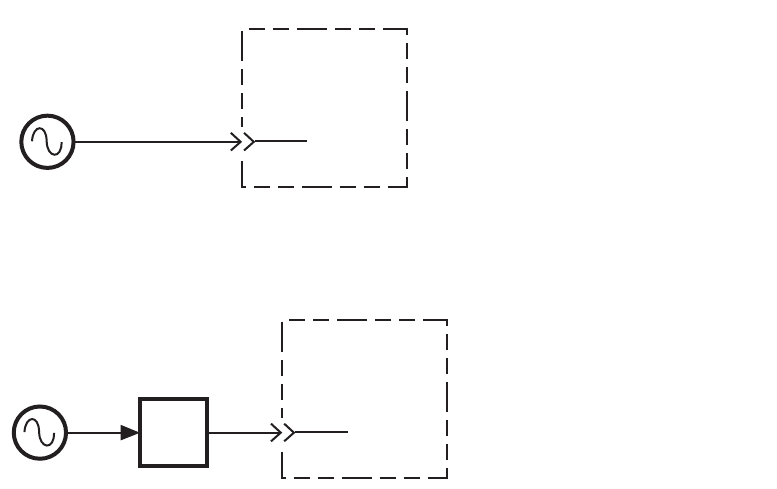

AM noise measurement block diagrams
Figure 217 AM noise system with N5500A opt 001
Figure 218 AM noise system with external detector
DUT
Signal
input
Test set
DUT
AM detector
Noise
input
Test set
