Click the Open button.
• The appropriate measurement definition parameters for this example
have been pre-stored in this file. Table 45 on page 282 lists the
parameter data that has been entered for the FM discriminator
measurement example.
5 From the Define menu, choose Measurement; then choose the Type and
Range tab from the Define Measurement window.
6 From the Measurement Type pull-down, select Absolute Phase Noise
(using an FM discriminator). See Figure 201.

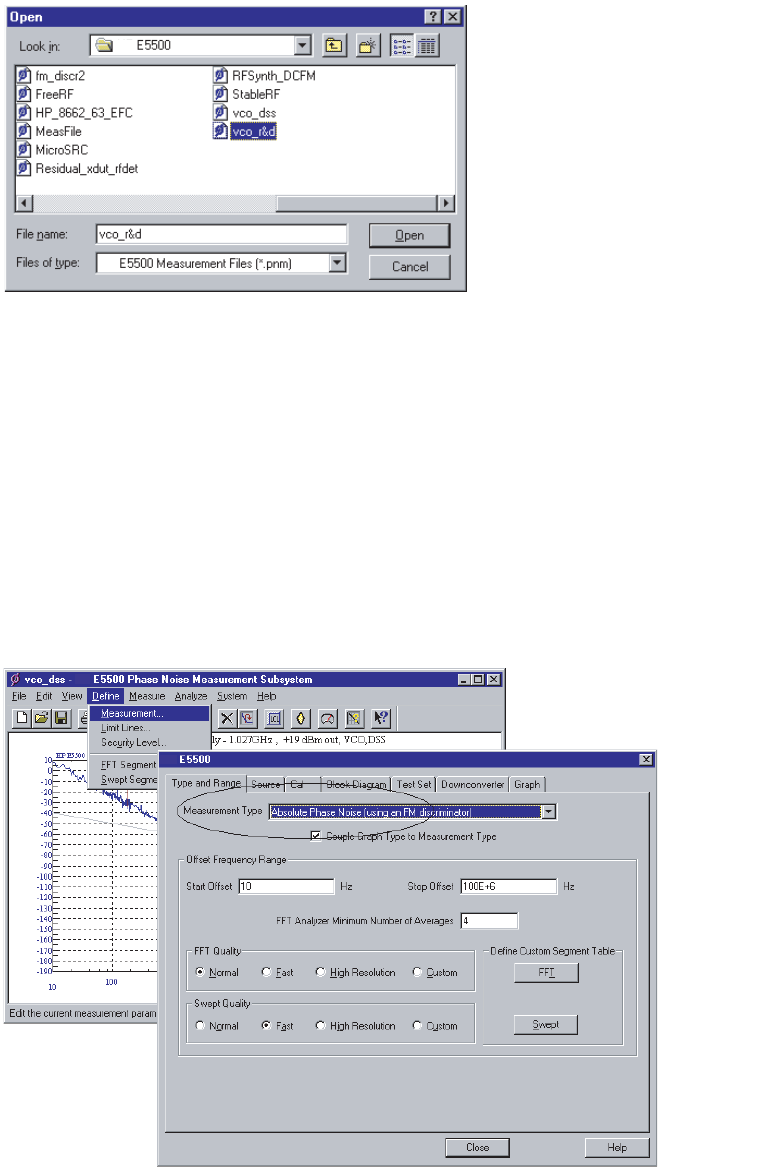

Figure 200 Select the parameters definition file
Figure 201 Select measurement type
