FM Discriminator Measurement Examples
10
Agilent E5505A User’s Guide 265
When the measurement is complete
When the measurement is complete, refer to Chapter 14, “Evaluating Your
Measurement Results for help in evaluating your measurement results. (If the
test system has problems completing the measurement, it will inform you by
placing a message on the computer display.

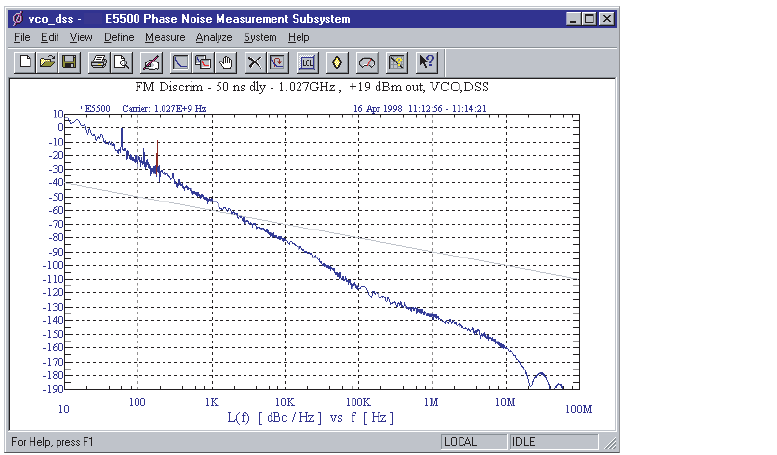

Figure 198 shows a typical absolute measurement using FM discrimination.
Figure 198 Typical phase noise curve using double-sided spur calibration
