264 Agilent E5505A User’s Guide
10
FM Discriminator Measurement Examples
3
Apply modulation to the carrier signal, then press Continue.
4
Remove the modulation from the carrier and connect your DUT.
.
5
The system can now run the measurement. At the appropriate point,
re-establish quadrature and continue the measurement.
.
The segment data will be displayed on the computer screen as the data is taken
until all segments have been taken over the entire range you specified in the
Measurement definition’s Type and Range.

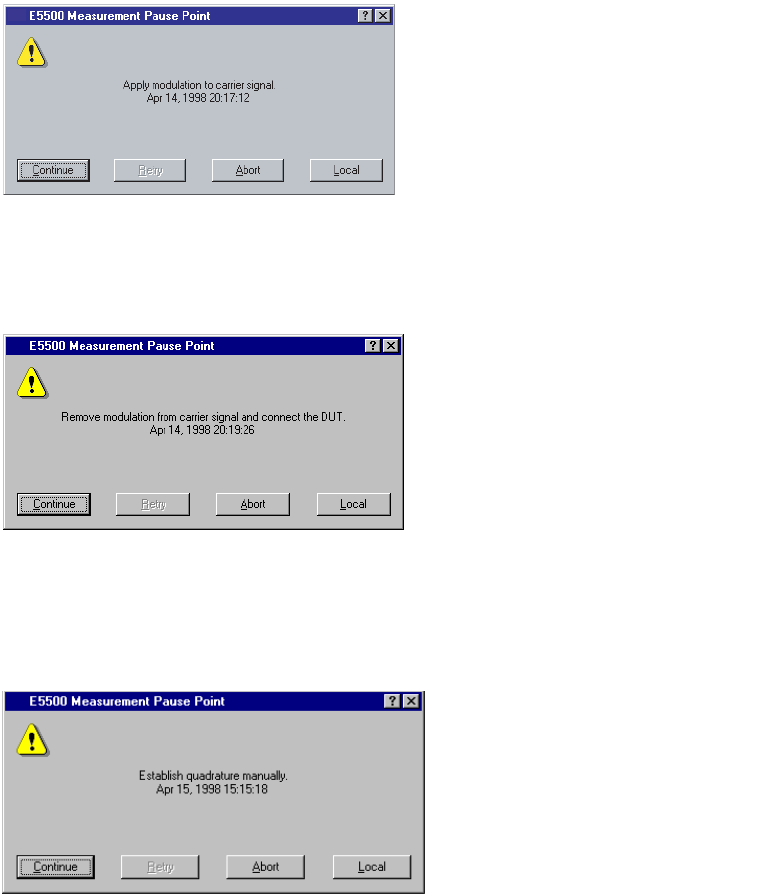

Figure 195 Calibration measurement (3 of 5)
Figure 196 Calibration measurement (4 of 5)
Figure 197 Calibration measurement (5 of 5)
