262 Agilent E5505A User’s Guide

FM Discriminator Measurement Examples

Making the measurement

Press the Continue button when you are ready to make the measurement.

Calibrating the measurement

The calibration procedure determines the discriminator constant to use in the

transfer response by measuring the system response to a known FM signal.

Refer to Figure 193 on page 263 through Figure 197 on page 264.

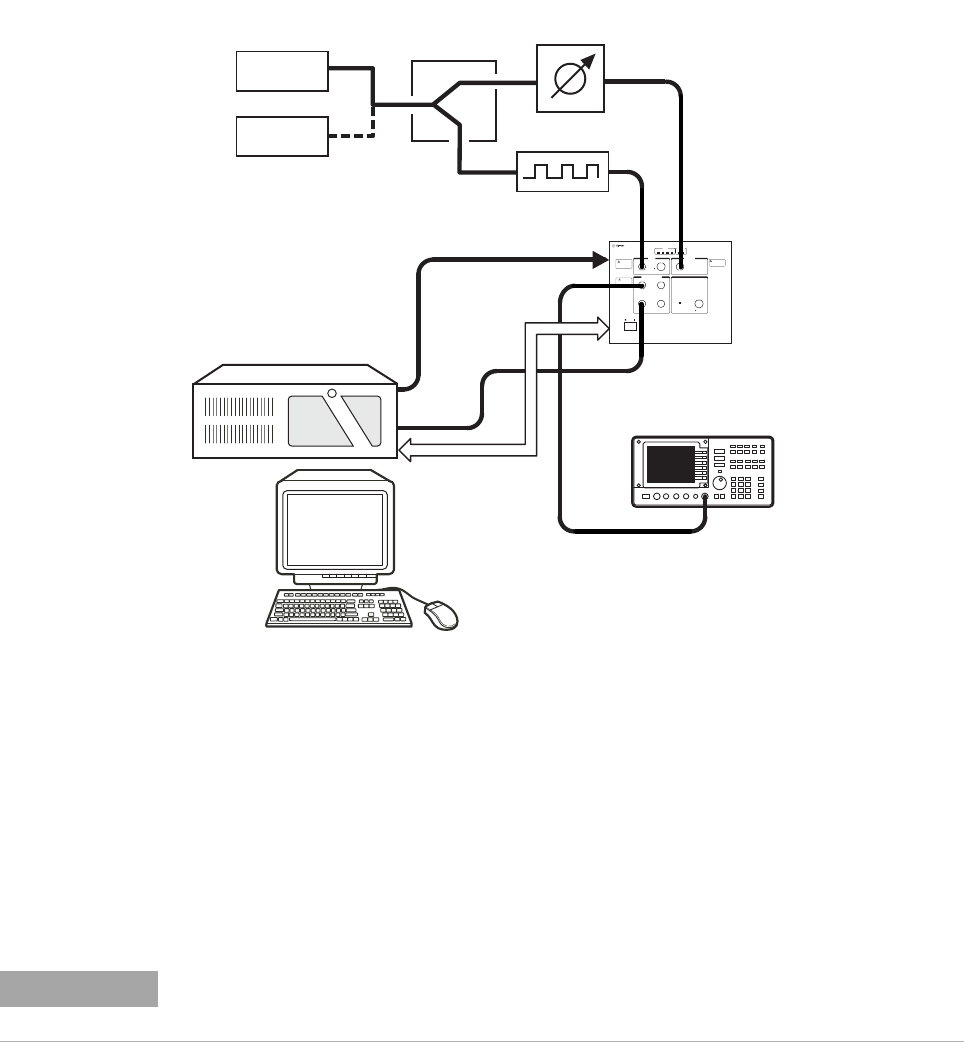

Figure 192 Connect diagram example

e5505a_user_connect_diag_ex

25 Jun 04 rev 3

23dBm

50kHz-1600 MHz

MAXIMUM POWER

20mA MAX

TUNE VOLTAGE

OUT OF LOCK

100kHz

ANALYZERANALYZER

RF ANALYZER

PHASE DET OUTPUT

MONITOR

15dBm MIN

50kHz-1600 MHz

REF INPUT

ERRACT

STATUS

SRQTLKLSN

GPIB

RMT

NOISE

0.01Hz-100 MHz

1V Pk

50kHz-1600 MHz

INPUT

SIGNAL

POSSIBLE

SIGNAL INPUT

100MHz

23dBm

50kHz-1600 MHz

MAXIMUM POWER

30dBm

OUTPUT POWER

POWER

N5500A

Test Set

Spectrum analyzer

Digitizer

input

Digitizer

output

GPIB

Display

Calibration

source

DUT

Power

splitter

Phase

shifter

Delay line

Test set

To test set rear panel

CHIRP input

NOTE

Note that the system must be operating in quadrature during calibration.
