258 Agilent E5505A User’s Guide

FM Discriminator Measurement Examples

Choose the Graph tab from the Define Measurement window.

Enter a graph description of your choice. See Figure 187.

When you have completed these operations, click the Close button.

Setup considerations

Connecting cables

The best results will be obtained if semi-rigid coaxial cables are used to

connect the components used in the measurement; however, BNC cables have

been specified because they are more widely available. Using BNC cables may

degrade the close-in phase noise results and, while adequate for this example,

should not be used for an actual measurement on an unknown device unless

absolutely necessary.

Measurement environment

The low noise floors typical of these devices may require that special attention

be given to the measurement environment. The following precautions will help

ensure reliable test results:

• Filtering on power supply lines

• Protection from microphonics

• Shielding from air currents may be necessary.

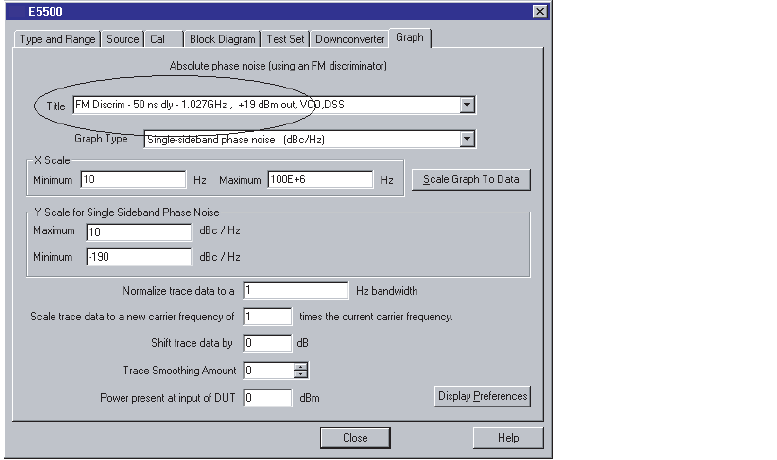

Figure 187 Select Graph Description on Graph Tab
