FM Discriminator Measurement Examples
10
Agilent E5505A User’s Guide 255
The appropriate measurement definition parameters for this example have
been pre-stored in this file. Table 42 on page 266 lists the parameter data
that has been entered for the FM discriminator measurement example.
5
From the Define menu, navigate to the Measurement window. Using
Figure 183 as a guide:
a
Choose the Type and Range tab from the Define Measurement window.
b
From the Measurement Type pull-down in Type and Range tab, select
Absolute Phase Noise (using an FM discriminator).

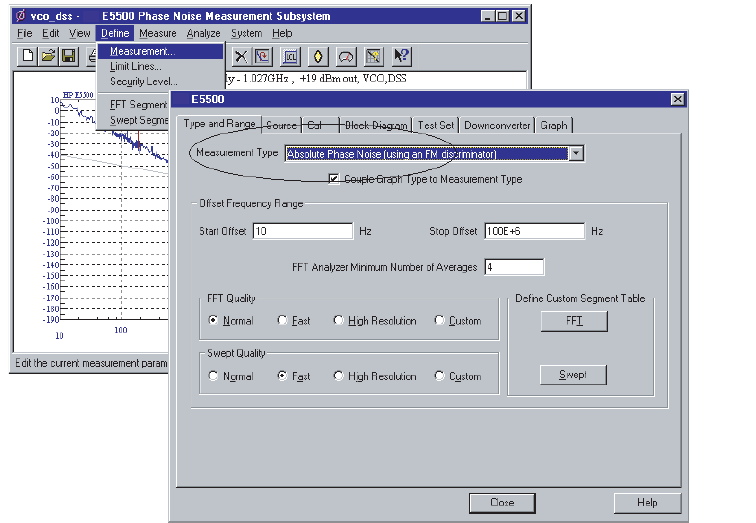

Figure 183 Select measurement type
